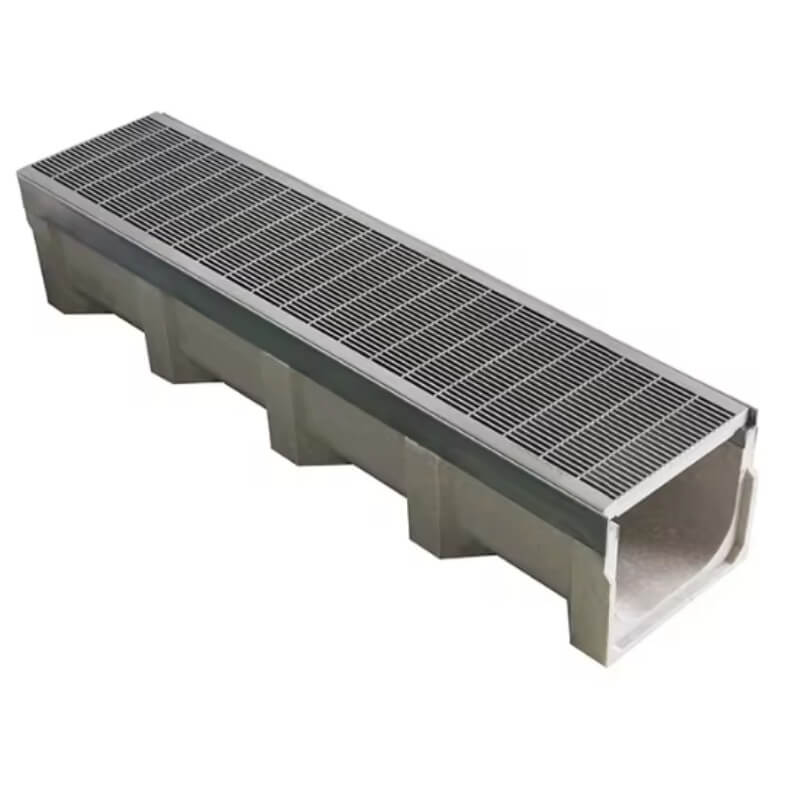

Middle Duty Drainage Channel With Steel Gratings

l  Winwin drainage channels are made of polymer concrete. Using polyester resin as a bonding agent combined with mineral aggregates, polymer concrete offers exceptional compressive strength. It is highly load-resistant, durable, and long-lasting. Polymer concrete is non-flammable, frost-resistant, weatherproof, and resistant to diluted acids and alkalis.

l  Stainless steel and galvanized steel wedge grating & trench covers are widely favored across global markets, featuring excellent durability and elegant appearance.

l  These drainage Wedge grating cover meet EN 1433 and EN 124 standards, with load capacities from A15 KN up to C250 KN.

Type for Steel Gratings  (Load Class A15KN,B125KN,C250KN)

Material and other requirements of Gratings:

1.Galvanized Steel

2.#201,#304,#316 and #316L Stainless Steel

3.Material thickness is subject to project requirements

4.The spacing of both longitudinal bars and cross bars is subject to project requirements.

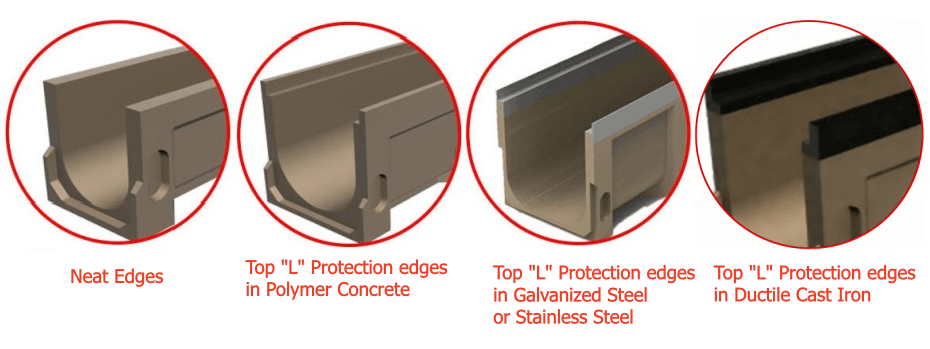

Material for Drainage Channel Protection edge

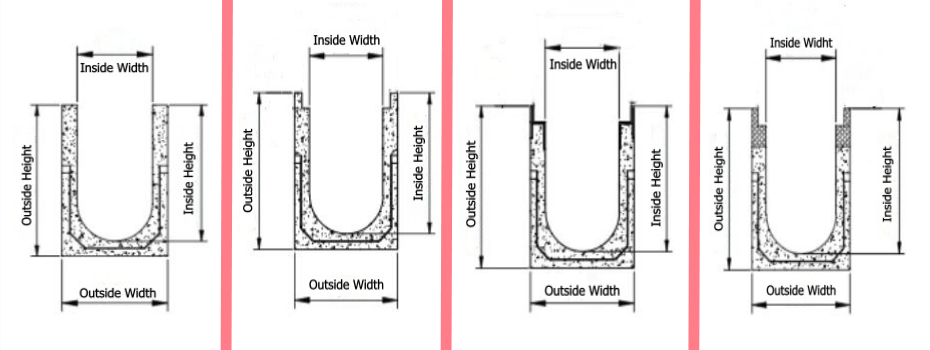

Drawings of Size for Polymer Concrete Drainage Channel

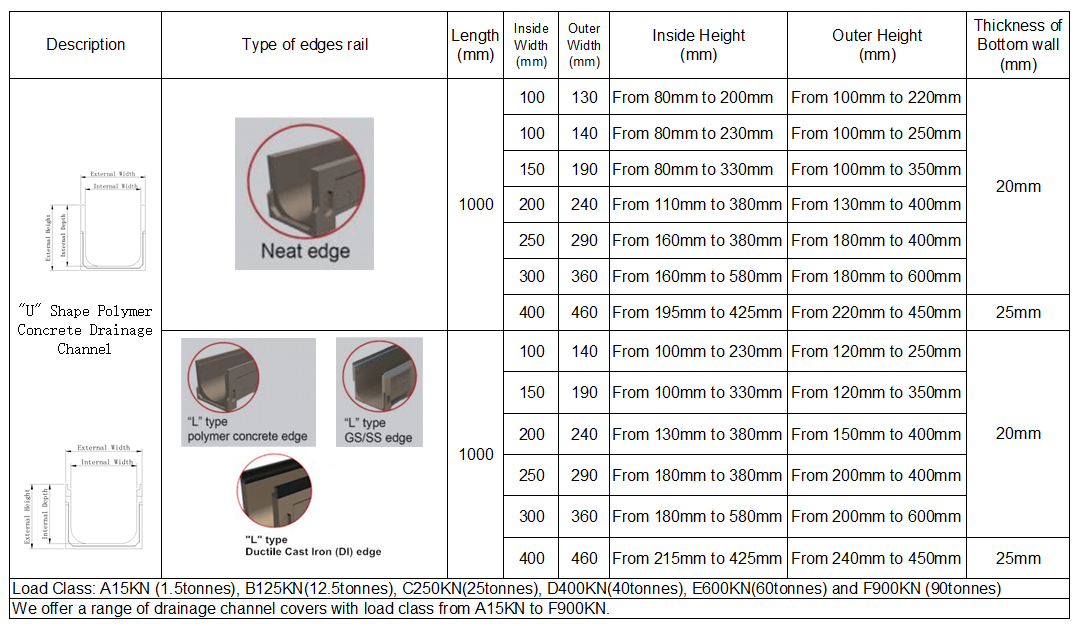

Size Chart for Winwin Polymer Concrete Drainage Channel

Winwin Polymer Concrete Channels are manufactured using resin as the bonding agent, combined with high-quality mineral aggregates. This makes polymer concrete an extremely compression-resistant building material that can withstand heavy loads while delivering exceptional durability and long service life.

Polymer concrete features non-flammable, frost-proof and excellent weathering resistance properties. It also offers reliable resistance to diluted acids, alkalis and various chemical substances, ensuring stable performance in diverse environments.

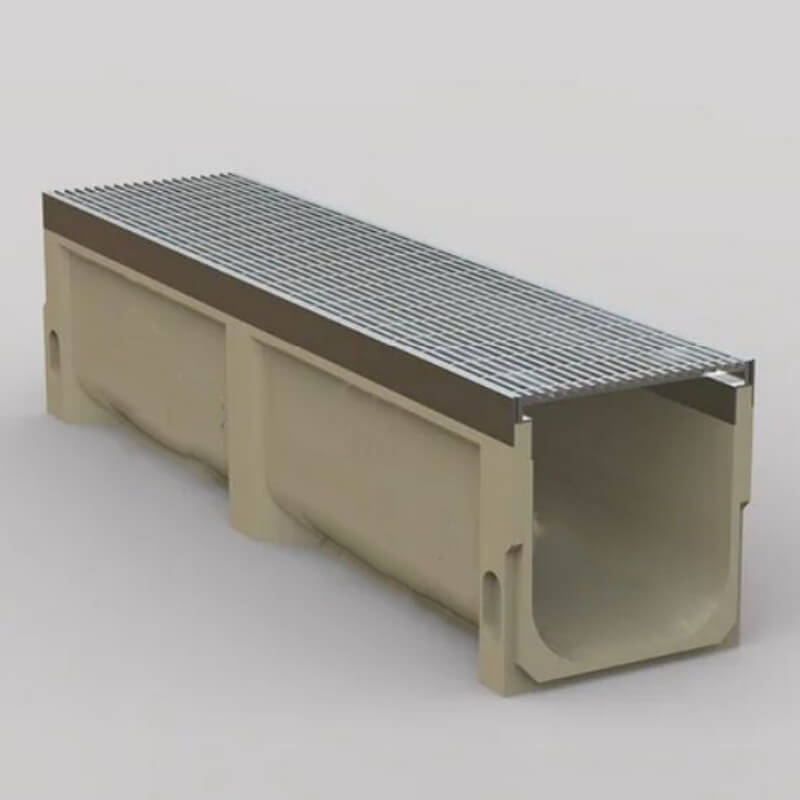

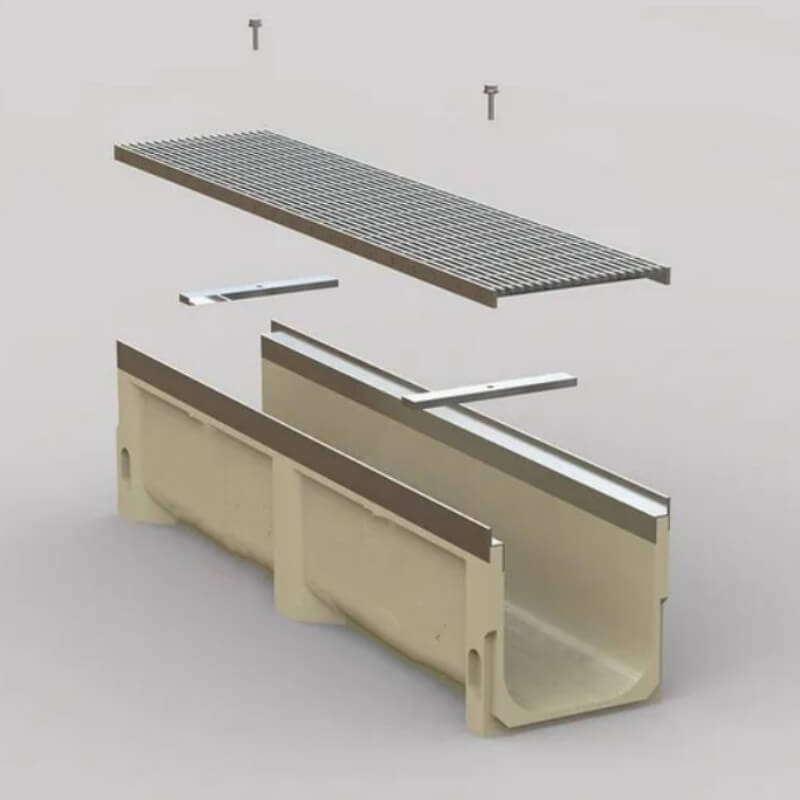

Winwin Midddle Duty Drain Channel with Steel Grating System

Drainage Channel with Steel Gratings

Applications for Drainage Channel + Steel Wedge Gratings

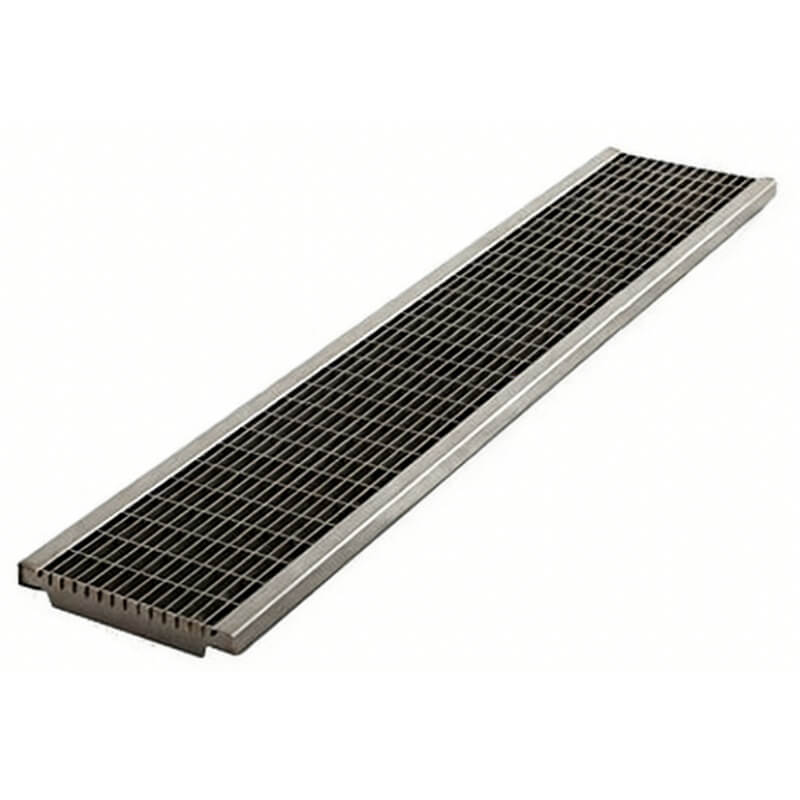

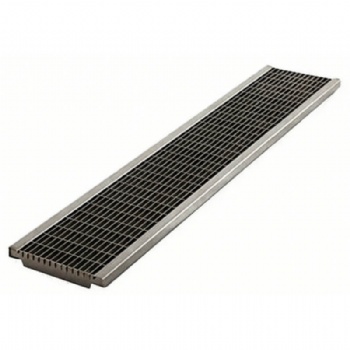

Stainless steel or galvanized steel wedge gratings and trench covers are popular in global markets due to their long service life and attractive appearance.

The drainage grating comply with EN1433 standard, with load class ranging from A15KN to C250KN.

The metal wedge trench gratings are suitable for light-traffic scenarios including sidewalks, private and public parking areas, gardens, parks, swimming pools, residential zones, business street, shopping area high grade community, hotals and other middle-duty commercial drainage projects.

Chart of Load Class

Certificate

Founded in 2006, WINWIN GROUP has obtained authoritative certifications including CE, ISO9001, ISO14001 and ISO45001. Meanwhile, WINWIN GROUP’s drainage channels and trench covers are manufactured in strict accordance with EN 1433 and EN 124 standards, ensuring superior product quality and compliance with global market requirements.

Winwin is a professional manufacturer of a complete range of drainage products, including Polymer Concrete Channels, Resin Concrete Trenches, Polymer Concrete Kerb Drains, Polymer Concrete Monolithic Drainage Channels, Slot Drains, Brickslot Drains, Trench Covers (Load Class A15KN to F900KN), Manhole Covers and other related drainage accessories. Our products have been tested in Spain and have successfully obtained the CE certification.

Our integrated drainage solutions are widely adopted for municipal roads, parking lots, logistics parks, commercial plazas, industrial zones, hospitals, landscape projects and other public infrastructure. They apply to building drainage, municipal water supply & drainage, road works and industrial floor drainage.Compliant with international quality standards, our products effectively prevent waterlogging and safeguard the structure of surrounding facilities.

With 20 years of manufacturing and exporting experience, we provide reliable quality, stable performance and competitive prices for global customers.
