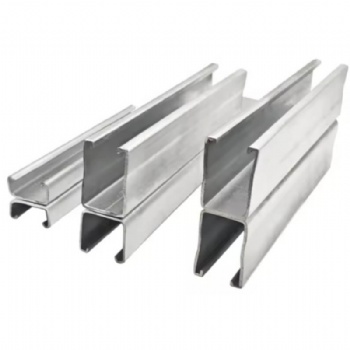

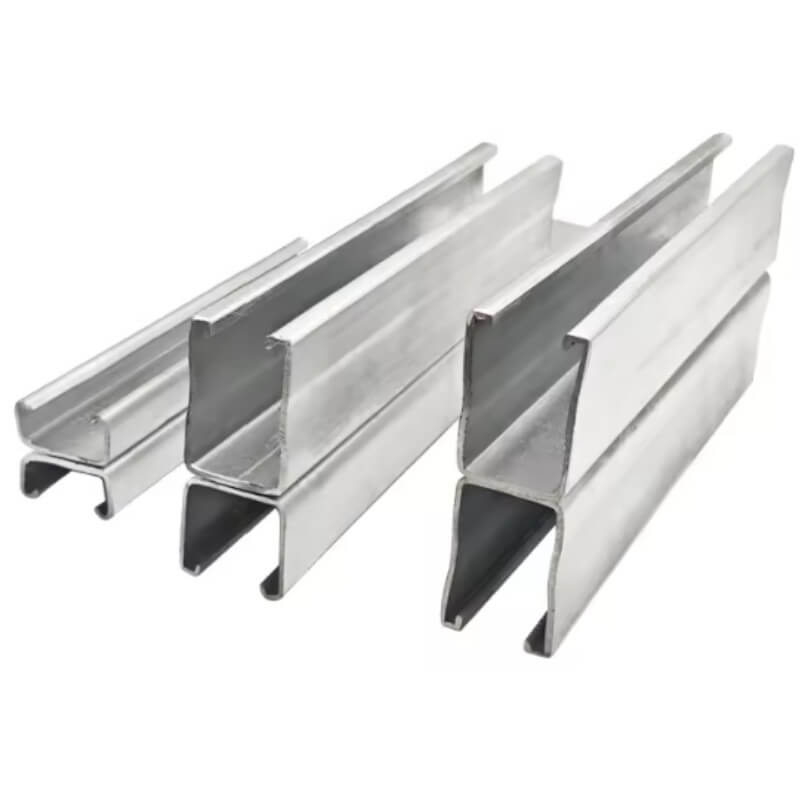

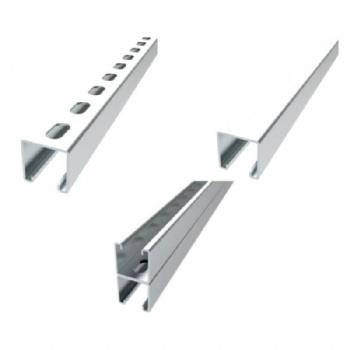

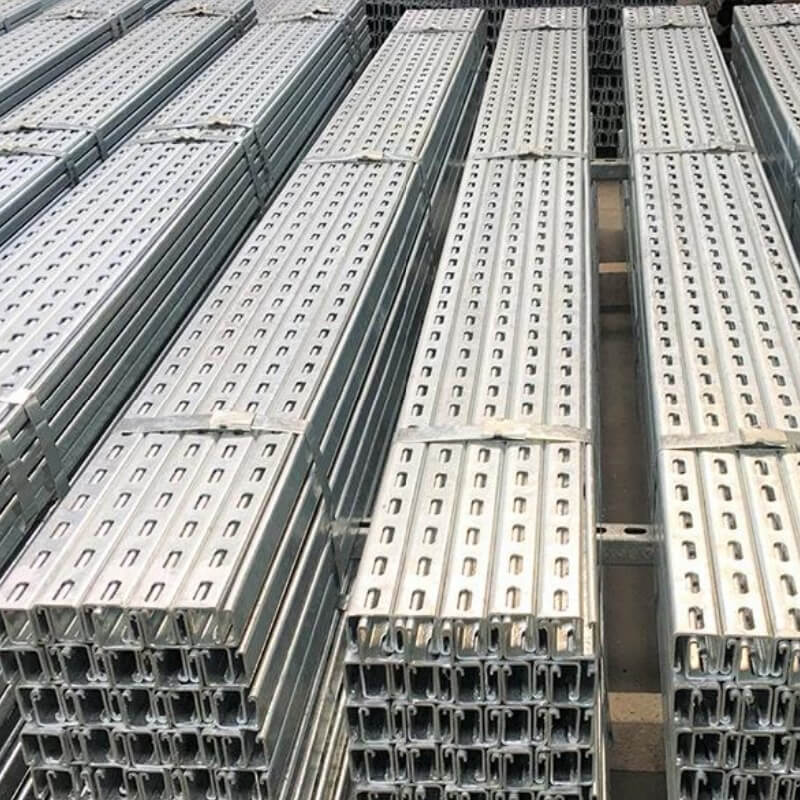

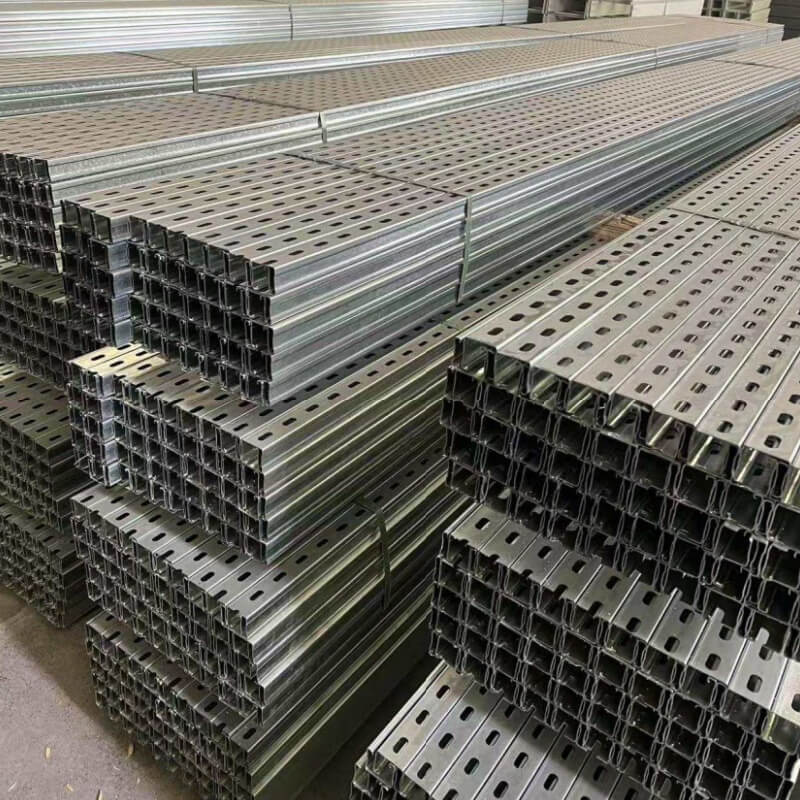

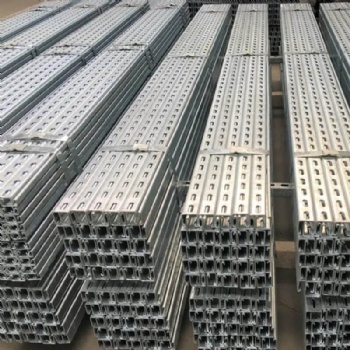

Hot Dip Galvanized Solid Strut Channel

Winwin Strut Channel (C Steel Channel) provides exceptional load-bearing capacity and modular versatility, making it an ideal support solution for HVAC systems, cable trays, pipelines and various mechanical installations.

Its pre-punched design allows fast on-site installation and easy customization, greatly reducing labor time and project costs.

With reliable structural rigidity and flexible assembly, Strut Channel is widely used in commercial buildings, industrial facilities, power plants, data centers and infrastructure construction projects.

It eliminates the need for complex on-site fabrication and adapts seamlessly to diverse installation requirements.

Strong, durable and easy to install, Winwin Strut Channel is the preferred choice for heavy-duty support systems in industrial, commercial and infrastructure applications worldwide.

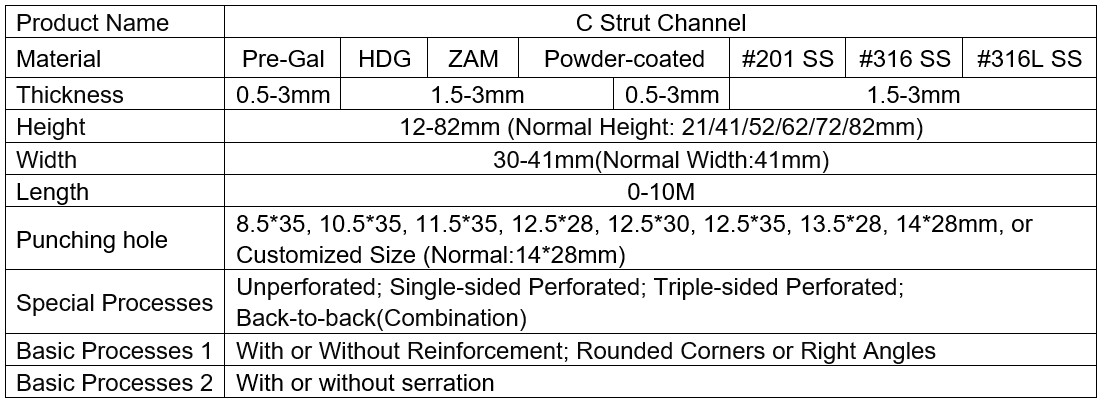

Strut Channel Details

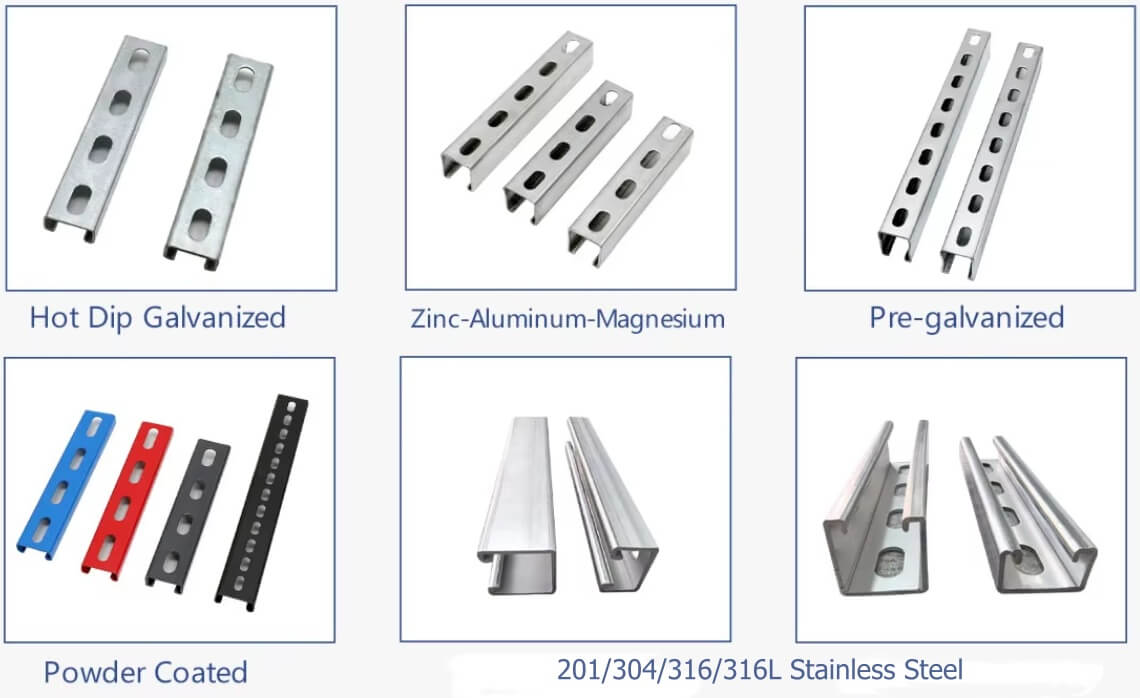

Material & Finish

·Electronic-Galvanized or Zinc Plated;

·Hot Dip Galvanized / HDG;

·Stainless Steel: SS304 / SS316/SS316L;

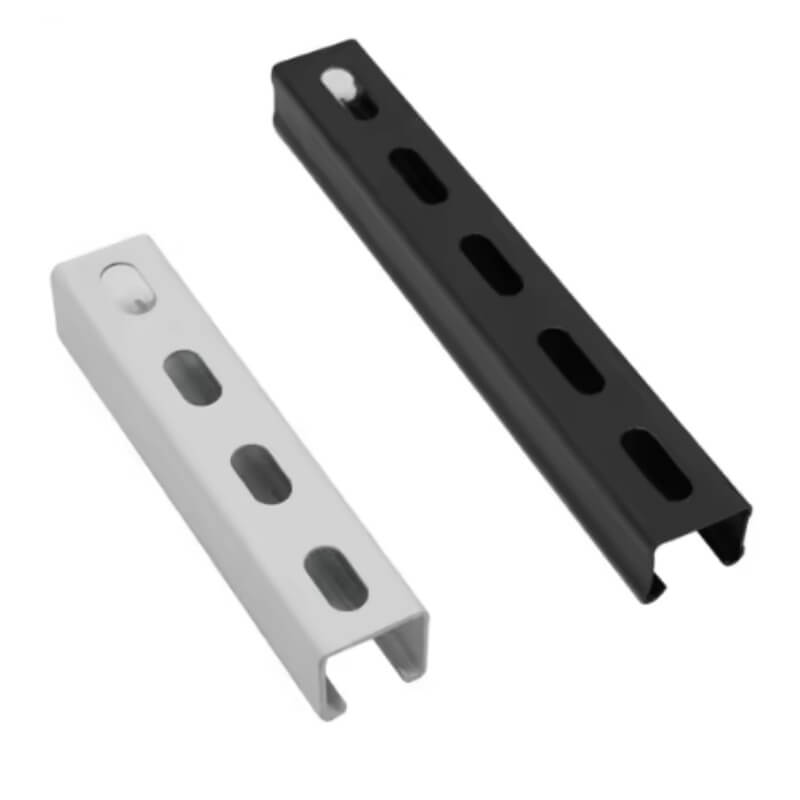

·Powder Coated or Paint;

·Mill / Mild /Plain Steel;

·ZAM

·Aluminium

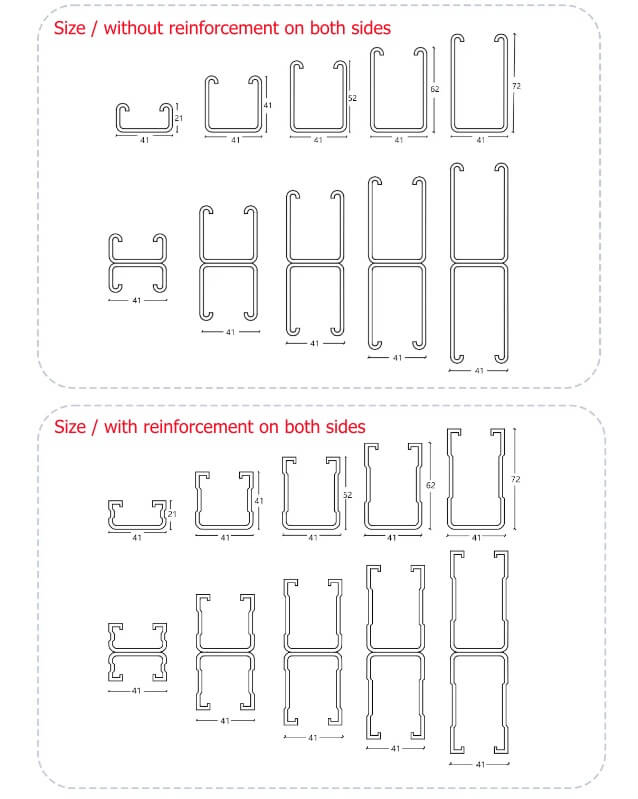

Drawing of size for strut channel

Standard size for C Strut channel: 41*21mm, 41*41mm,41*62mm,41*72mm and 41*82mm. Can be customized according to customer's size.

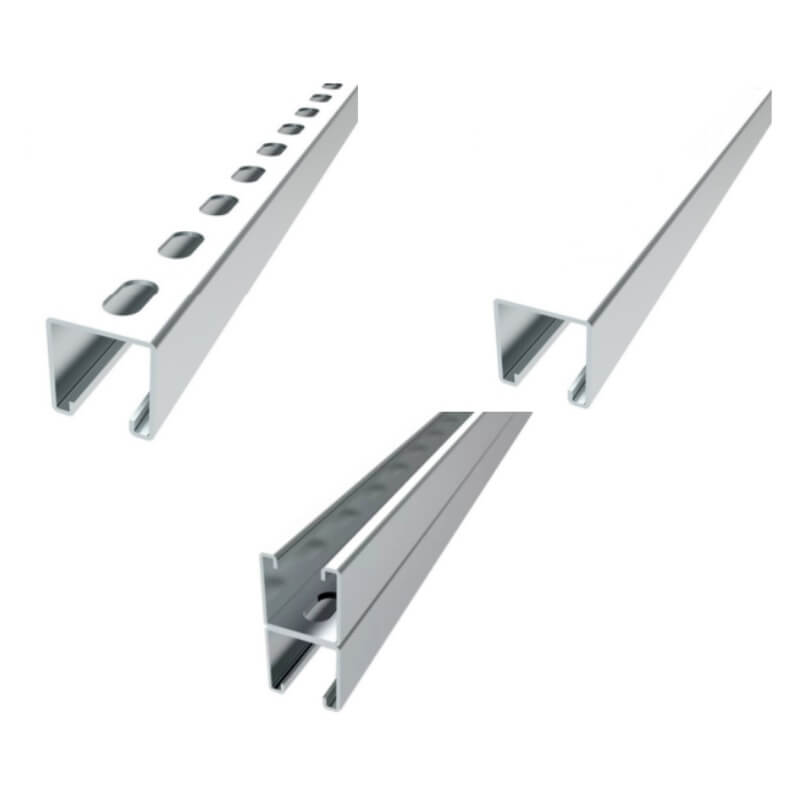

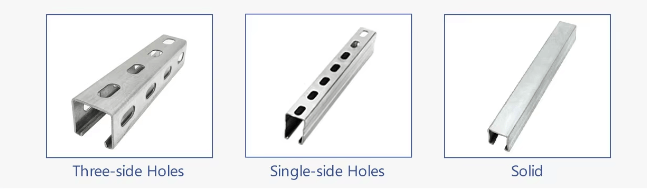

Slot Strut or Solid Strut

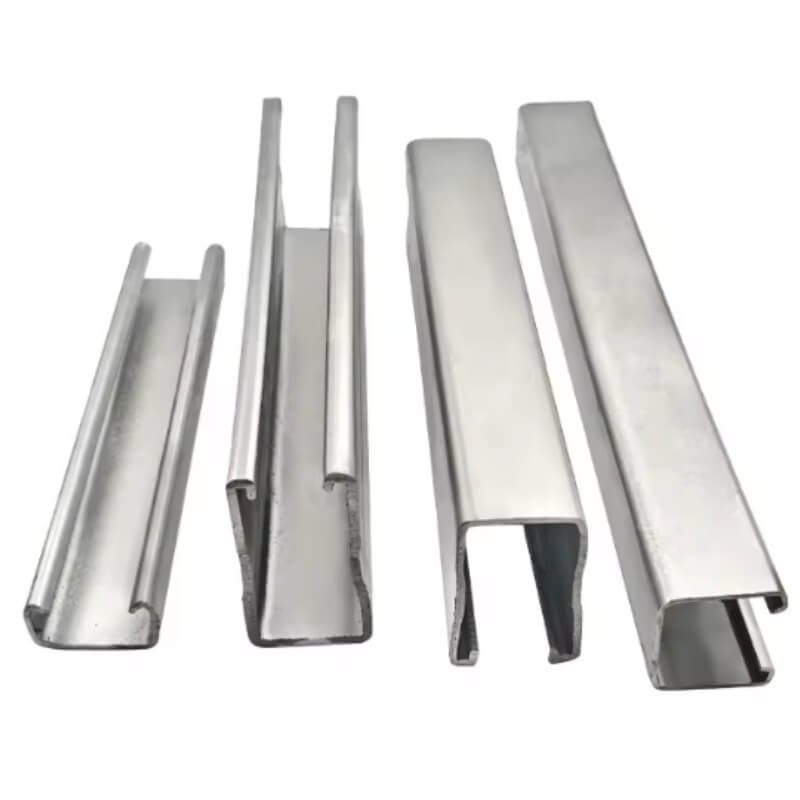

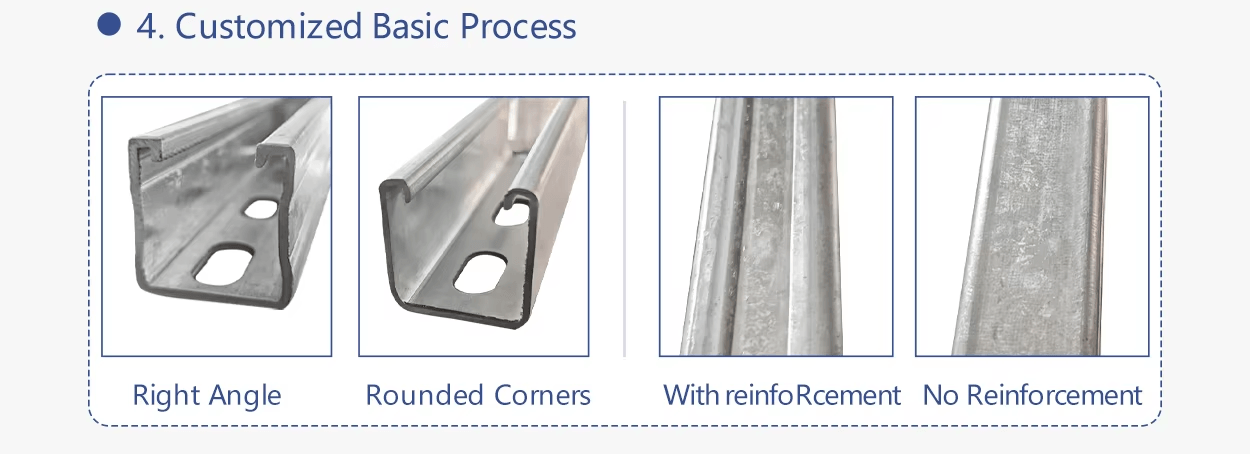

Right angle or roung corners / With or without Reinforcement

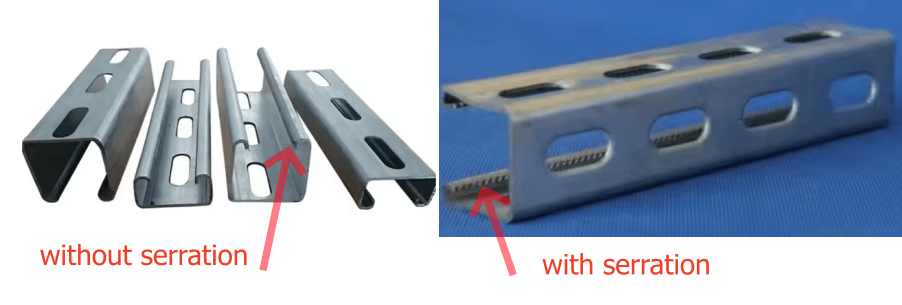

With or without serration for C Strut Channel

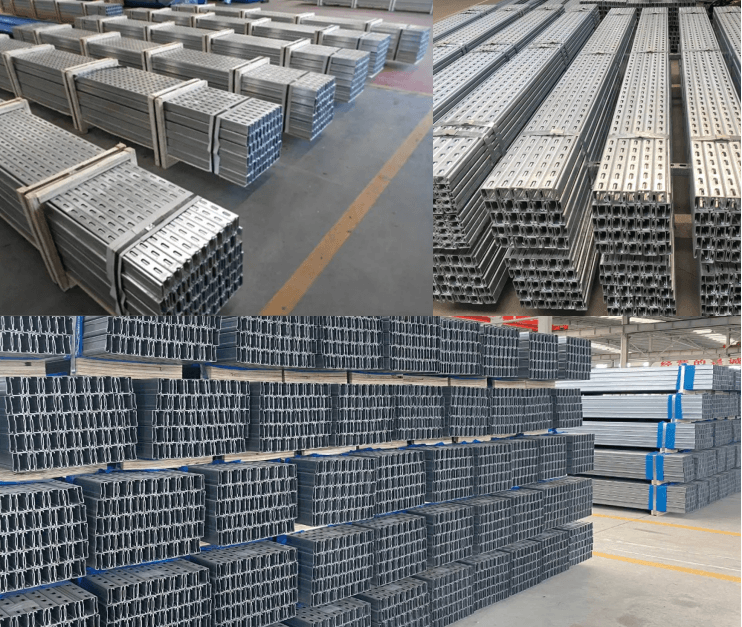

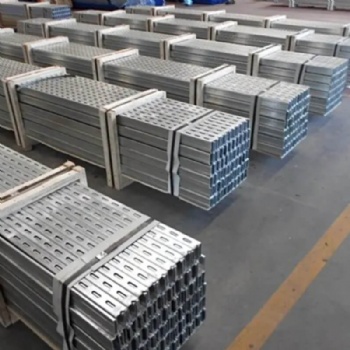

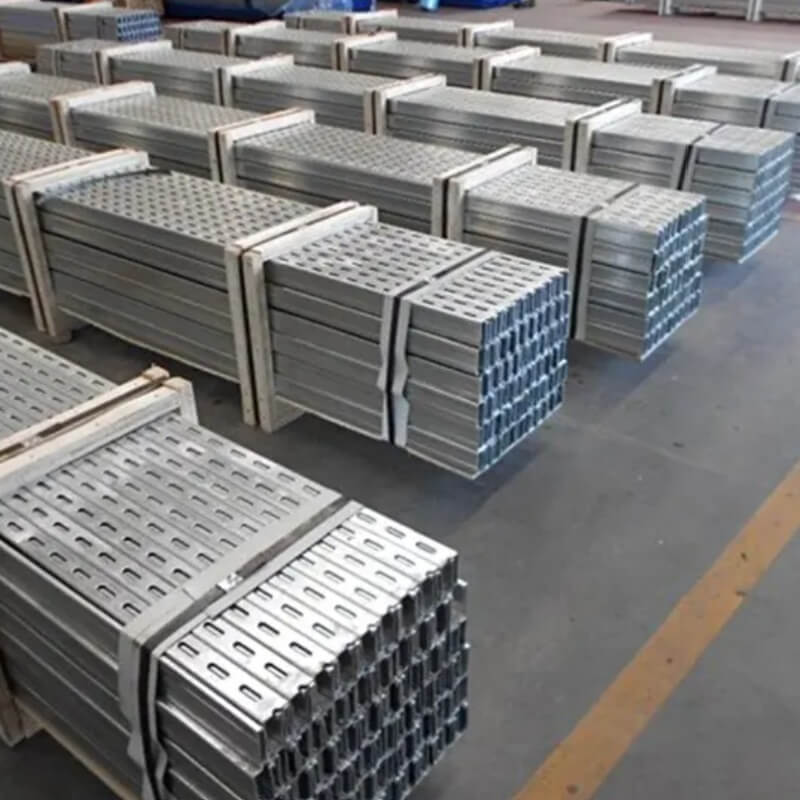

Packing And Delivery For Strut Channel

1.In bundle

2.Wrapping Film,plastic tape, Plywood pallet.

3.As per requirements

Annual Production Capacity: 5000 Tons

With a large-scale production base, we are fully capable of supporting large orders, mass production, and ensuring stable and on-time delivery for global customers.

Strict Quality Control System

We implement a complete 5-step inspection process from raw material procurement to finished product delivery, strictly controlling every detail to ensure products meet international standards. All our cable trays and strut channels are certified by UL, CE, NEMA, SGS, and ISO9001.

Customization Service

We provide professional OEM & ODM services, supporting customization in size, surface treatment, load capacity, hole patterns, and other specifications to meet different project requirements.

Professional After-Sales & Technical Support

Our experienced after-sales team offers reliable technical support, on-site guidance, and customized solution design for your industrial and construction projects.

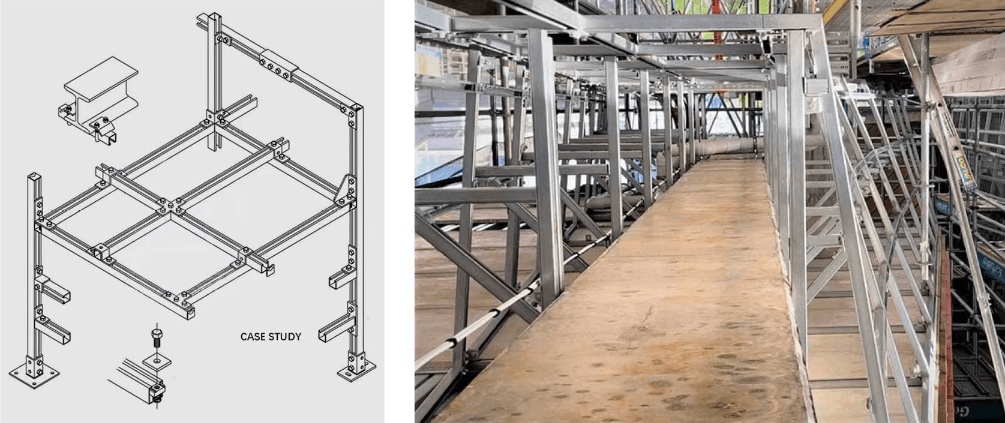

Strut channel layout and project case

Main Application

Certificate

Founded in 2006, Winwin Group has obtained certifications including UL, cUL,CE, SGS, ISO9001, ISO14001, ISO45001,IEC 61537-2006 and NEMA VE 1-2009.

Winwin is a professional manufacturer and supplier of a full range of cable management solutions, specializing in the design, production, and export of high-quality products. Our main products include pre-galvanized steel cable trays, hot-dip galvanized cable trays, powder coated cable trays, fire-resistant steel cable trays, stainless steel cable trays, basket cable trays, wire mesh cable trays, perforated cable trays, cable trunking, cable ladders, hinging cable trays, ZAM cable trays, large-span cable tray, aluminum cable trays, FRP cable trays, strut channels, and complete cable tray accessories.

Our premium cable trays and strut channels are widely used in commercial buildings, power plants, industrial workshops, hospitals, subways, data centers and other construction & electrical projects. They serve cable management, hoisting systems, industrial power distribution and building electromechanical engineering.We deliver stable quality, reliable performance and competitive pricing, offering cost-effective solutions for industrial and commercial projects across the globe.

Boasting 20 years of manufacturing and exporting experience, we have built an extensive global sales network and serve more than 70 countries and regions around the world, including the United States, Spain, Germany, Australia, New Zealand, and many others. We are committed to offering stable quality, on-time delivery, and professional services to global customers.

Welcome to contact us for long-term win-win cooperation.
