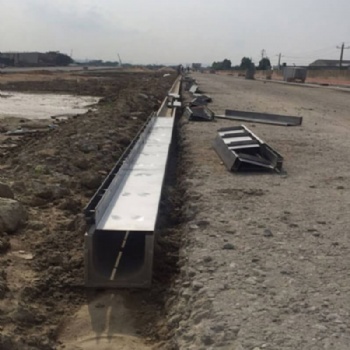

Linear Drainage Channel Cover

Type of Steel SlotDrain Cover

• Winwin slot drains are available in single-slot or multi-slot designs.

• Each slot width ranges from 7 mm to 20 mm, with 10-15 mm as the standard option.

• For pedestrian-friendly areas such as shopping malls and plazas, a 7 mm slot width is often used to prevent women’s high heels from getting stuck.

• Raw Materials:201, 304, 316, 316L stainless steel

• Stainless Steel Thickness:1.5 mm, 2 mm, or customized as required

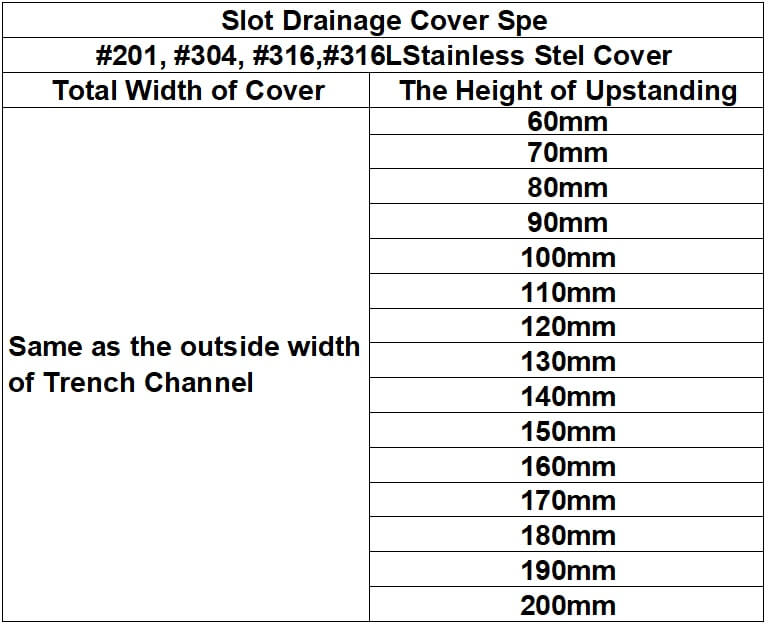

Specification of steel slot covers

Drawings for Slotted Drainage Cover

If you have specific requirements for steel slot covers, we can supply our standard products or discuss customized development solutions. We are capable of designing, manufacturing and conducting performance tests on steel products to fully meet your demands.

Slot drainage channels bring new possibilities to architectural design. The linear slot drainage system features excellent drainage performance, making it ideal for areas with high standards for pavement and landscape design. Compatible with nearly all types of floor finishing materials, this system also delivers outstanding load-bearing capacity. It is a modular integrated drainage solution consisting of steel slot covers, resin concrete channel bodies or PP/HDPE trench channels, catch basins, inspection wells and other supporting accessories.

Winwin BrickSlot Drainage System overview

Winwin SlotDrain Systems

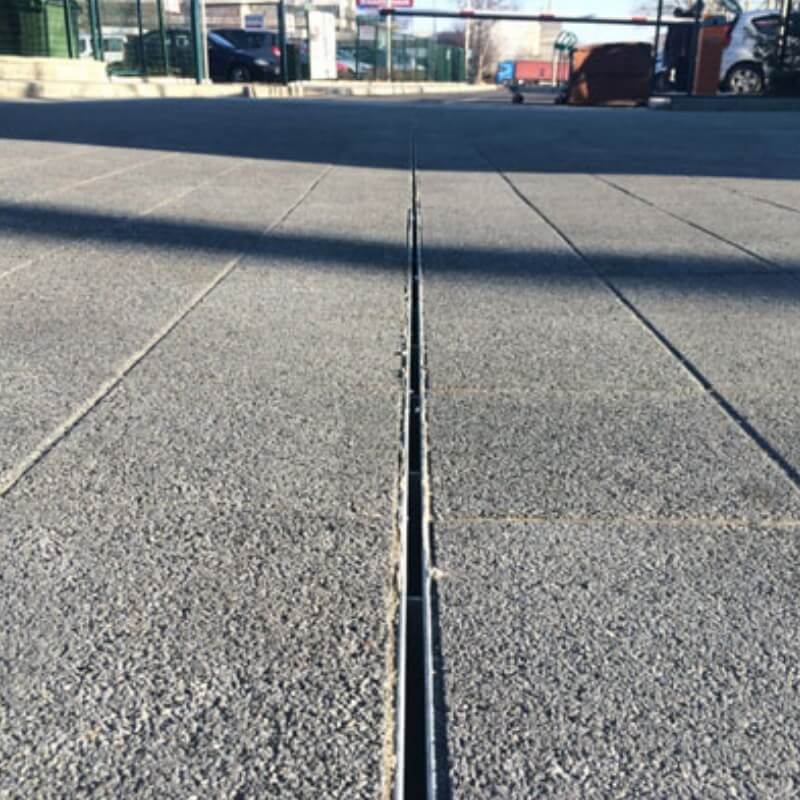

Winwin slot drain covers, paired with polymer concrete drainage channels, feature a sleek, low-profile design that ensures efficient water drainage while blending seamlessly with surrounding pavement.

With high chemical resistance and a lightweight structure, the system significantly reduces installation time and long-term maintenance costs.

Ideal for commercial plazas, retail parking lots, restaurant patios, residential driveways, outdoor landscape drainage systems, such as business street,shopping area,high-grade community,hotels,gardens this complete paveslot drain system or brickslot drainage system delivers reliable performance for light to medium traffic areas and complies with strict environmental standards for sustainable municipal infrastructure projects.

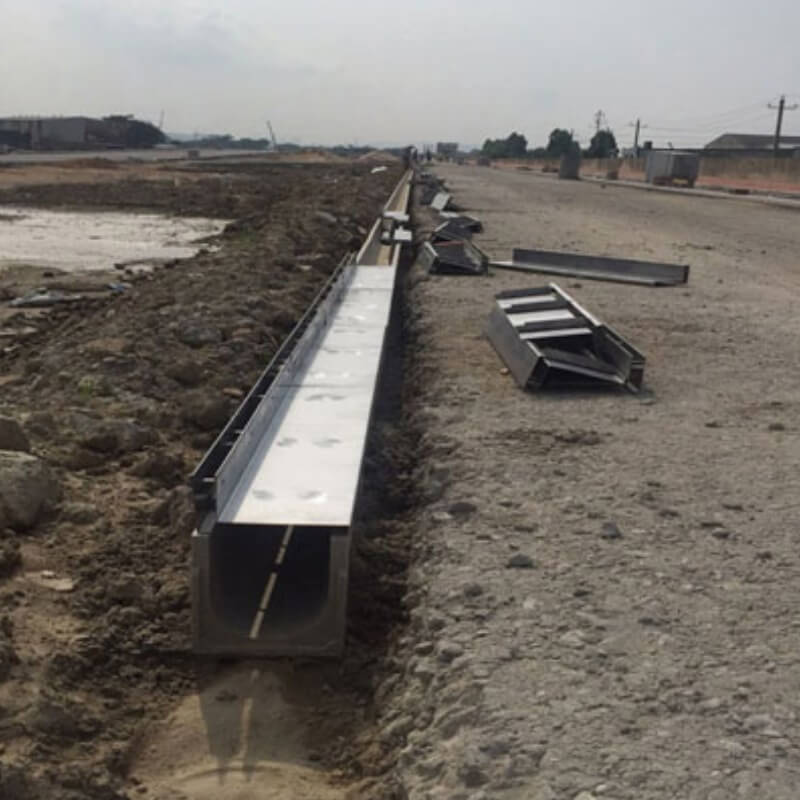

Drainage Channel With Slot Drain Cover

Applications for Slot Drain

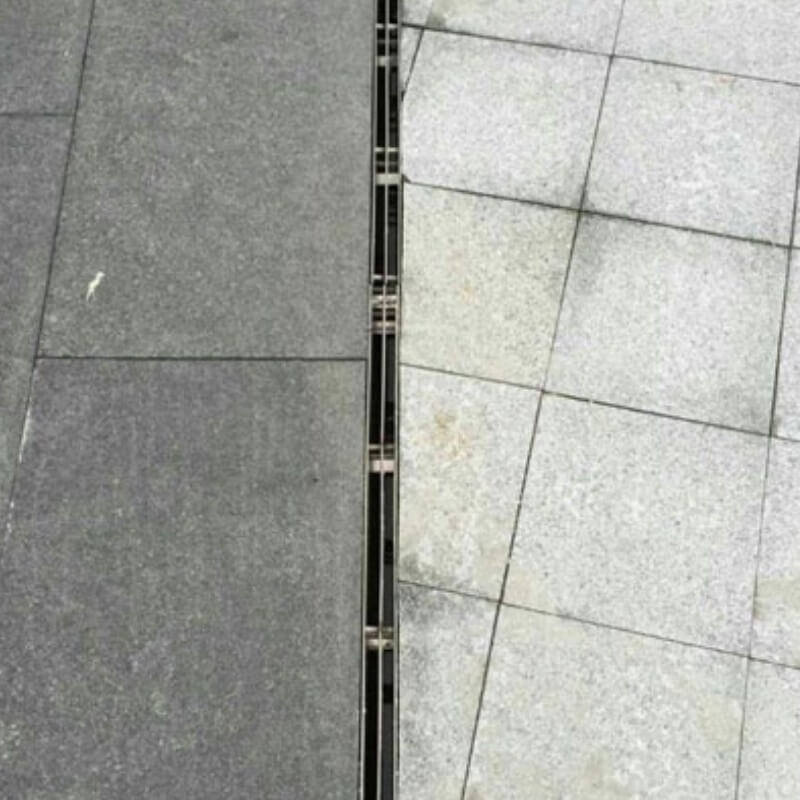

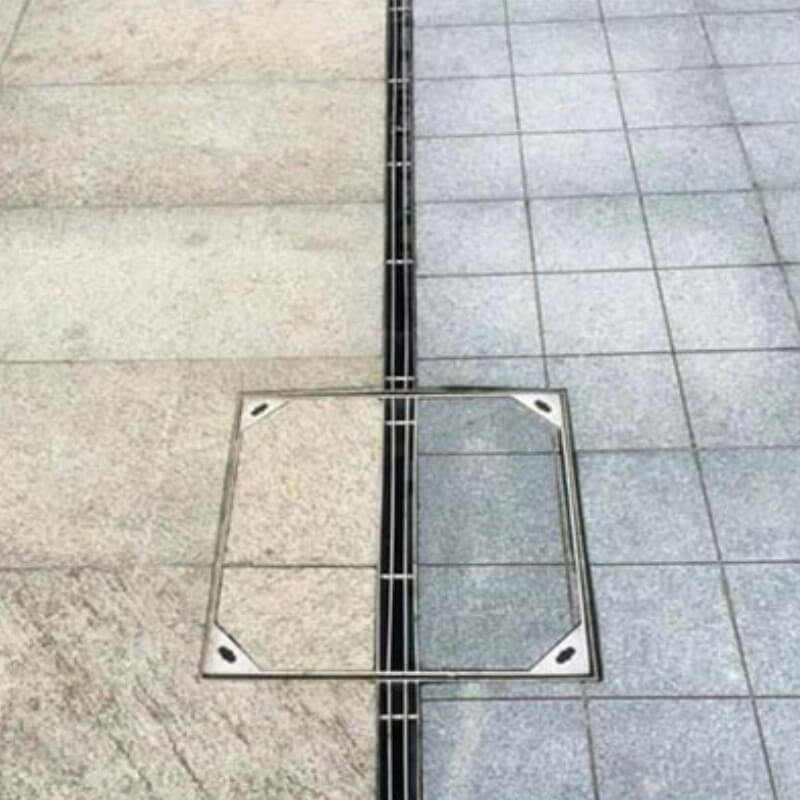

Slot drain features an elegant, concealed design that integrates discreetly into the ground, leaving only a 7–20 mm wide linear slot visible.

It is an ideal drainage solution for high-standard outdoor landscape projects, including commercial streets, shopping areas, high-end communities, hotels, gardens and other aesthetically demanding environments.

Chart of Load Class

Certificate

Founded in 2006, WINWIN GROUP has obtained authoritative certifications including CE, ISO9001, ISO14001 and ISO45001. Meanwhile, WINWIN GROUP’s drainage channels and trench covers are manufactured in strict accordance with EN 1433 and EN 124 standards, ensuring superior product quality and compliance with global market requirements.

Winwin is a professional manufacturer of a complete range of drainage products, including Polymer Concrete Channels, Resin Concrete Trenches, Polymer Concrete Kerb Drains, Polymer Concrete Monolithic Drainage Channels, Slot Drains, Brickslot Drains, Trench Covers (Load Class A15KN to F900KN), Manhole Covers and other related drainage accessories. Our products have been tested in Spain and have successfully obtained the CE certification.

Our integrated drainage solutions are widely adopted for municipal roads, parking lots, logistics parks, commercial plazas, industrial zones, hospitals, landscape projects and other public infrastructure. They apply to building drainage, municipal water supply & drainage, road works and industrial floor drainage.Compliant with international quality standards, our products effectively prevent waterlogging and safeguard the structure of surrounding facilities.

With 20 years of manufacturing and exporting experience, we provide reliable quality, stable performance and competitive prices for global customers.

Welcome to contact us for long-term win-win cooperation.
