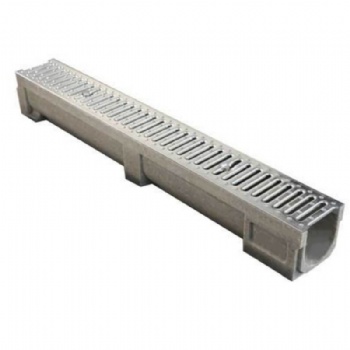

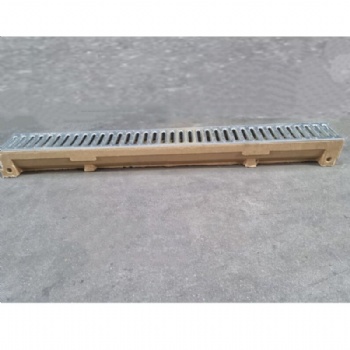

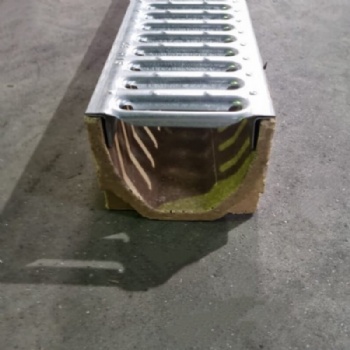

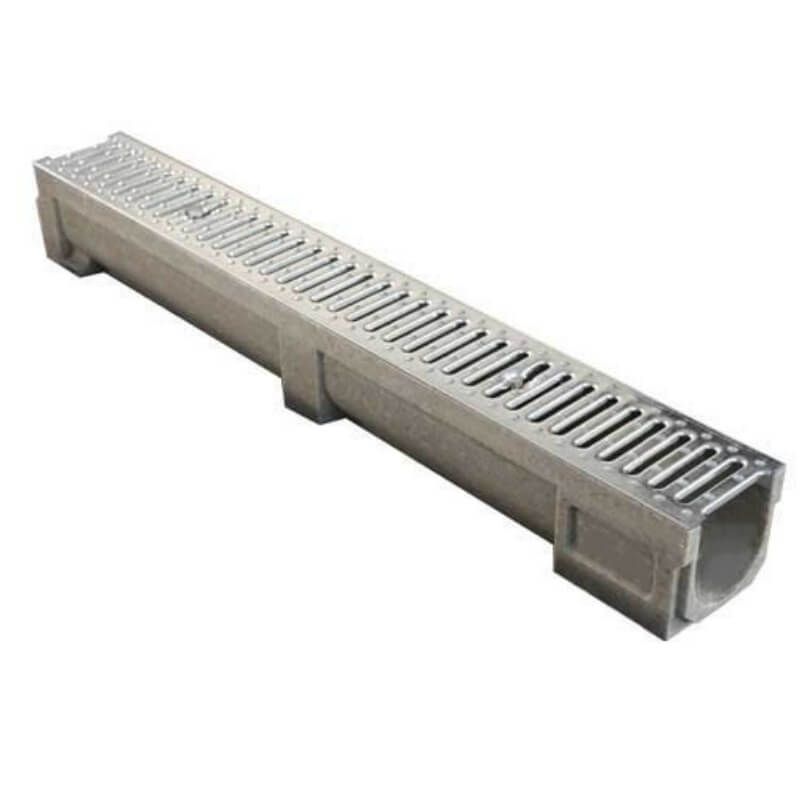

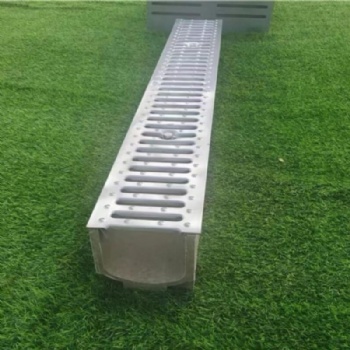

Light Duty Drainage Channel With A15 Trench Cover

• Winwin drainage channels are made of polymer concrete. Using polyester resin as a bonding agent combined with mineral aggregates, polymer concrete offers exceptional compressive strength. It is highly load-resistant, durable, and long-lasting. Polymer concrete is non-flammable, frost-resistant, weatherproof, and resistant to diluted acids and alkalis.

• Stainless steel or galvanized steel drainage covers are popular in global markets for their long service life and attractive appearance.

• They comply with EN1433 and EN124 standards, with a load class of A15 kN.

Type for Trench Cover (Load Class A15KN)

Material for Drainage Channel Protection edge

Drawings of Size for Polymer Concrete Drainage Channel

Size Chart for Winwin Polymer Concrete Drainage Channel

Winwin Polymer Concrete Channels are manufactured using resin as the bonding agent, combined with high-quality mineral aggregates. This makes polymer concrete an extremely compression-resistant building material, capable of withstanding heavy loads while offering exceptional durability and a long service life.

Polymer concrete features non-flammable, frost-proof and excellent weathering resistance properties. It also offers reliable resistance to diluted acids, alkalis and various chemical substances, ensuring stable performance in diverse environments.

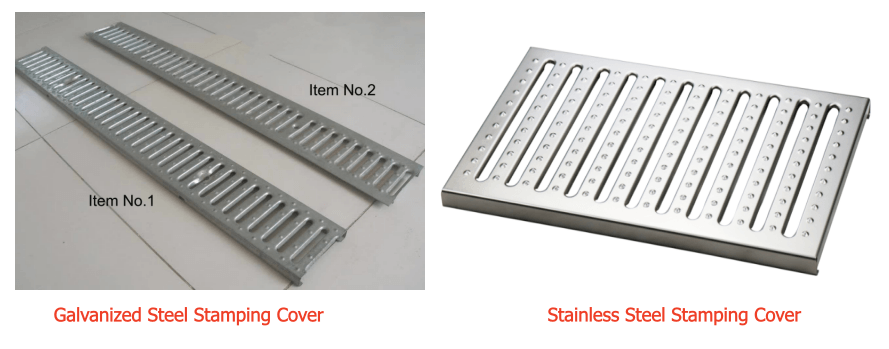

Type of Trench Cover

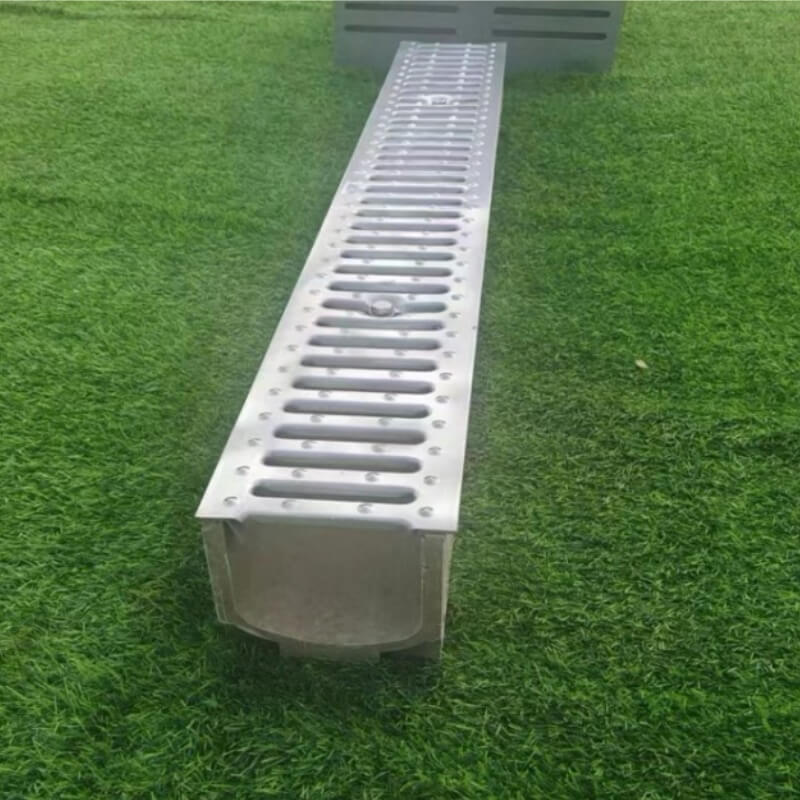

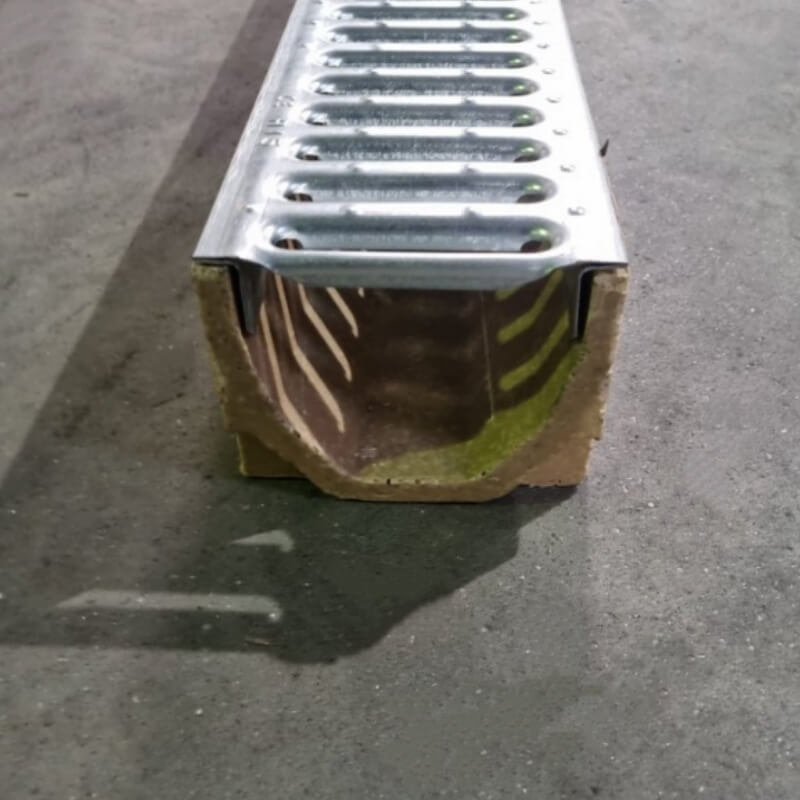

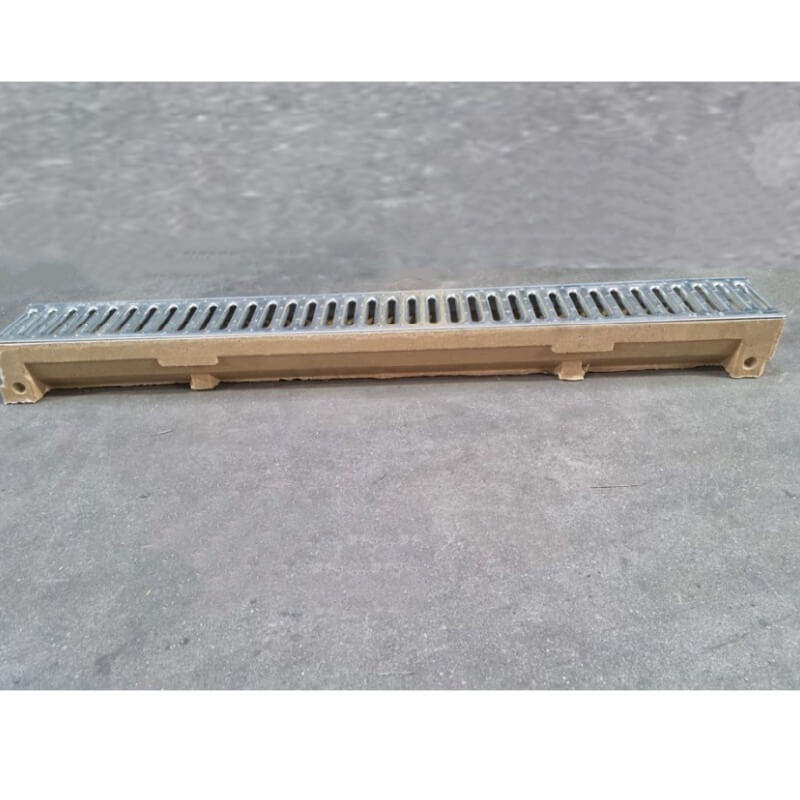

Systems of Light Duty Drainage Channel with Trench Cover

The advantage of Polymer Concrete Channel

(1) Robust, durable, stable and lightweight.

(2) High compressive strength, bending strength and impact resistance, with excellent anti-corrosion performance.

(3) Resistant to abrasion, weathering, water penetration and freeze-thaw cycles.

(4) Simple structure, safe and convenient to use; solid structure with strong load-bearing capacity, long service life, smooth surface, easy maintenance, anti-aging, anti-corrosion, anti-cracking, frost-resistant, non-flammable, zero water absorption, and high resistance to chemical and biological attack.

(5) Long service life: over 50 years under normal working conditions.

(6) Fast and high-volume drainage, easy to clean with removable or inspection grating covers; equipped with a combined sump and sediment bucket to solve the accumulation and blockage of daily garbage such as sand, mud, sediment and rubbish, and free of peculiar smell.

(7) Load capacity: from Load Class A15 to F900 (up to 90 tonnes).

(8) Unique U-shaped design with an ultra-smooth surface for efficient hydraulic flow, improved drainage capacity and flow rate, and self-cleaning function; no contamination hazard.

(9) Easy to install, durable, cost-effective and requires minimal maintenance.

Polymer Concrete Material Properties

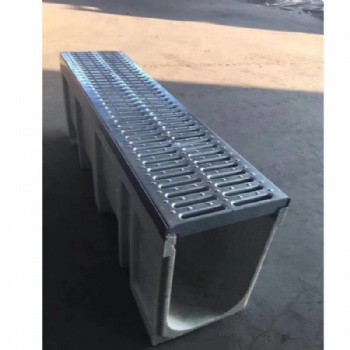

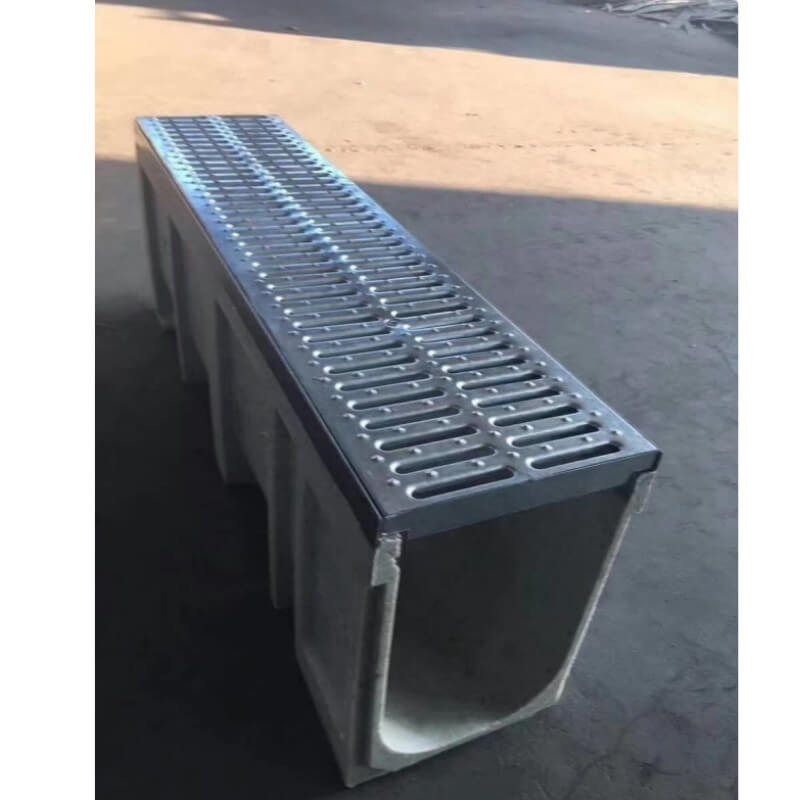

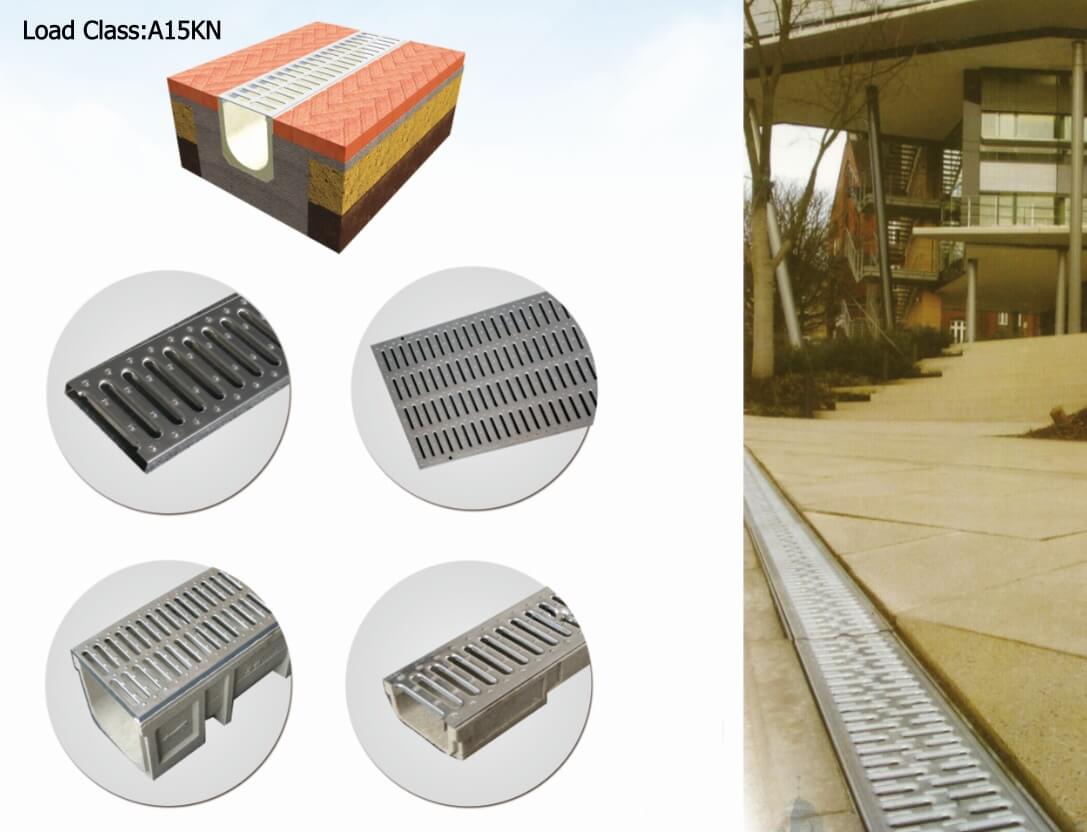

Drainage Channel with A15KN Stamping Cover

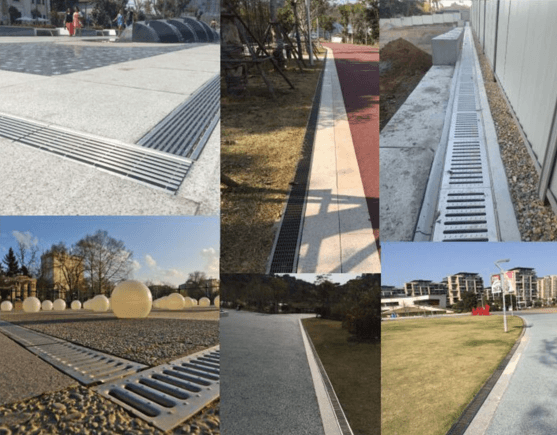

Applications for Drainage Channel + Trench Cover (A15KN)

Stainless steel or galvanized steel stamping trench covers are popular in global markets due to their long service life and attractive appearance.

They comply with EN1433 and EN124 standard, with load classes A15KN.

These drain gully stamping covers are suitable for light pedestrian areas, sidewalks, small private parking lots, plaza, gardens, parks, swimming pools, residential areas, kitchen and light-duty commercial drainage applications.

Chart of Load Class

Certificate

Founded in 2006, WINWIN GROUP has obtained authoritative certifications including CE, ISO9001, ISO14001 and ISO45001. Meanwhile, WINWIN GROUP’s drainage channels and trench covers are manufactured in strict accordance with EN 1433 and EN 124 standards, ensuring superior product quality and compliance with global market requirements.

Winwin is a professional manufacturer of a complete range of drainage products, including Polymer Concrete Channels, Resin Concrete Trenches, Polymer Concrete Kerb Drains, Polymer Concrete Monolithic Drainage Channels, Slot Drains, Brickslot Drains, Trench Covers (Load Class A15KN to F900KN), Manhole Covers and other related drainage accessories. Our products have been tested in Spain and have successfully obtained the CE certification.

Our integrated drainage solutions are widely adopted for municipal roads, parking lots, logistics parks, commercial plazas, industrial zones, hospitals, landscape projects and other public infrastructure. They apply to building drainage, municipal water supply & drainage, road works and industrial floor drainage.Compliant with international quality standards, our products effectively prevent waterlogging and safeguard the structure of surrounding facilities.

With 20 years of manufacturing and exporting experience, we provide reliable quality, stable performance and competitive prices for global customers.

Welcome to contact us for long-term win-win cooperation.
