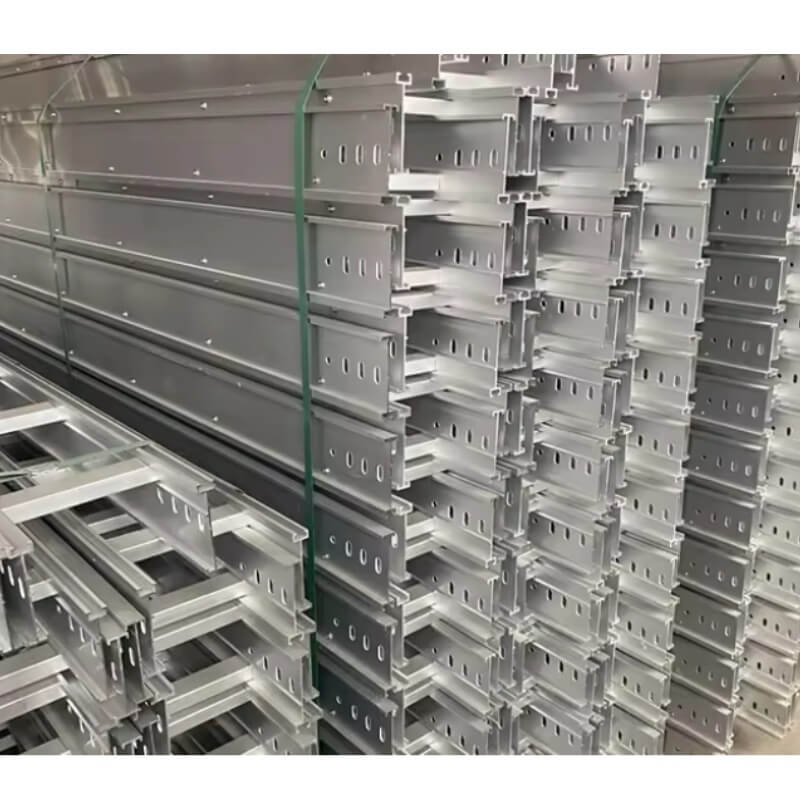

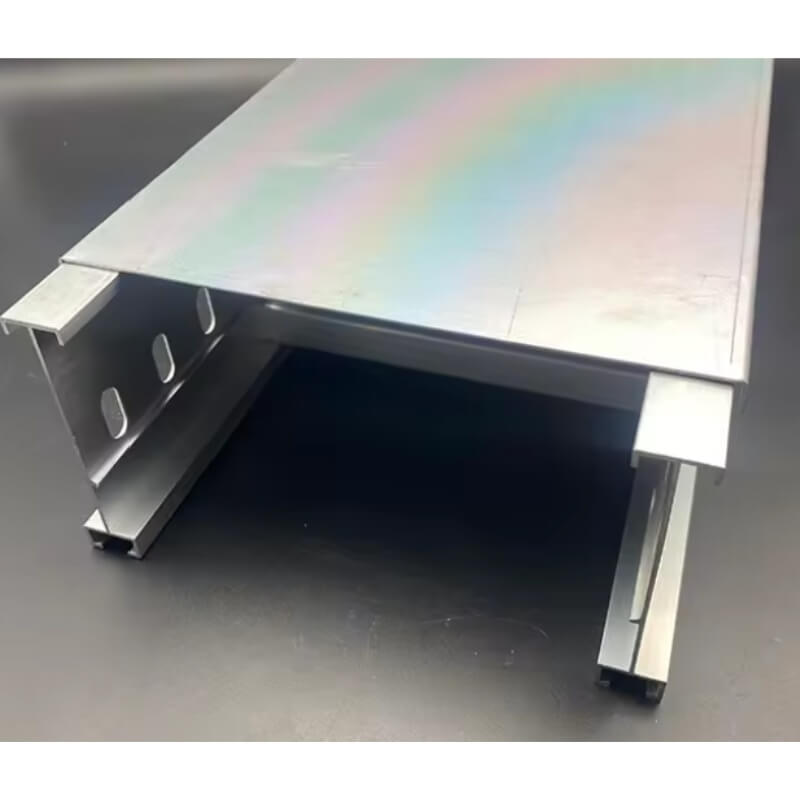

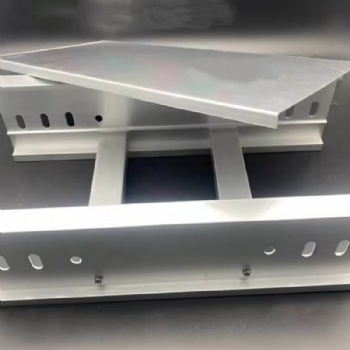

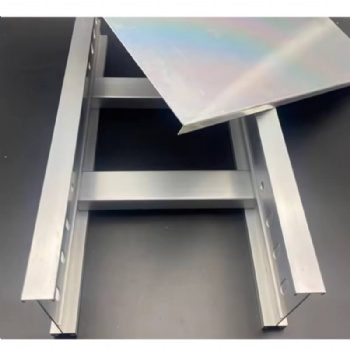

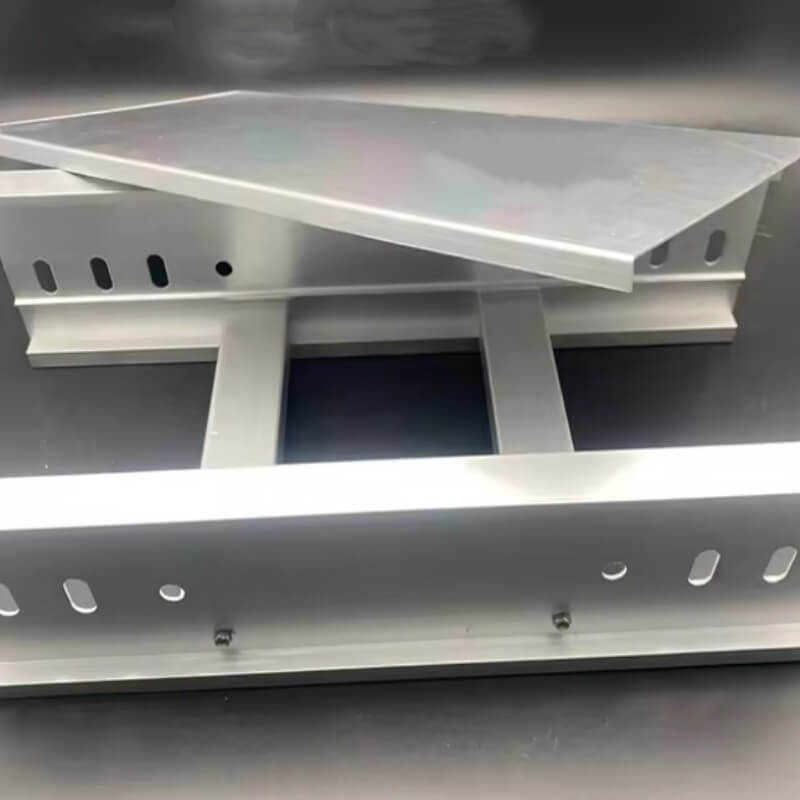

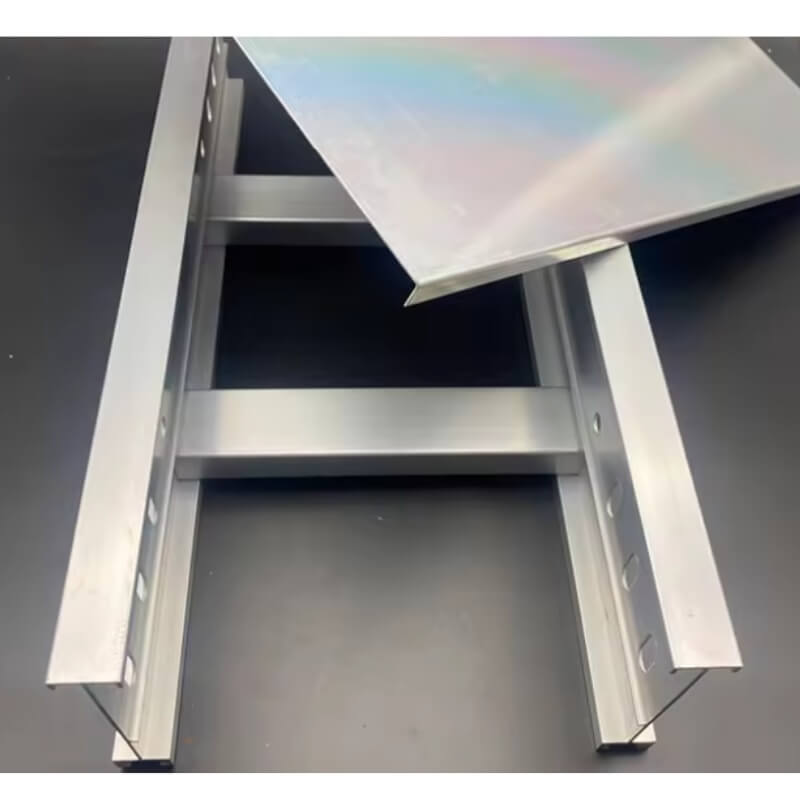

Aluminium Profile Ladder Type Cable Tray

Winwin Aluminium Profile Cable Ladder is fabricated from premium standard aluminium alloy profiles via precision cutting, punching and assembly, featuring an outstanding strength-to-weight ratio, inherent full corrosion resistance and tool-free convenient assembly. This lightweight metal cable ladder serves as a premium heavy-duty cable management solution for industrial plants, power substations and global telecom infrastructure projects.

Lightweight, structural-rigid and permanently rust-free, this aluminium ladder cable tray delivers stable high load-bearing performance for safe, long-term cable routing, adaptable to humid indoor, coastal outdoor and mildly corrosive working environments. Widely applied in utility power grids, modern manufacturing workshops and large building construction sites, it cuts long-term maintenance expenditure and simplifies daily cable inspection, modification and circuit upgrades.

Featuring excellent thermal dissipation performance and high temperature stability, Winwin Aluminium Profile Cable Ladder offers steady cable support for large-scale power distribution, data center cabling and municipal infrastructure works. With maintenance-free service, flexible modular assembly and long lifespan, it becomes a top preferred sustainable cable ladder choice for global commercial and industrial electrical wiring projects.

Material & Finish available

·Aluminium Profile:6063;

·Aluminium Plate:1060;

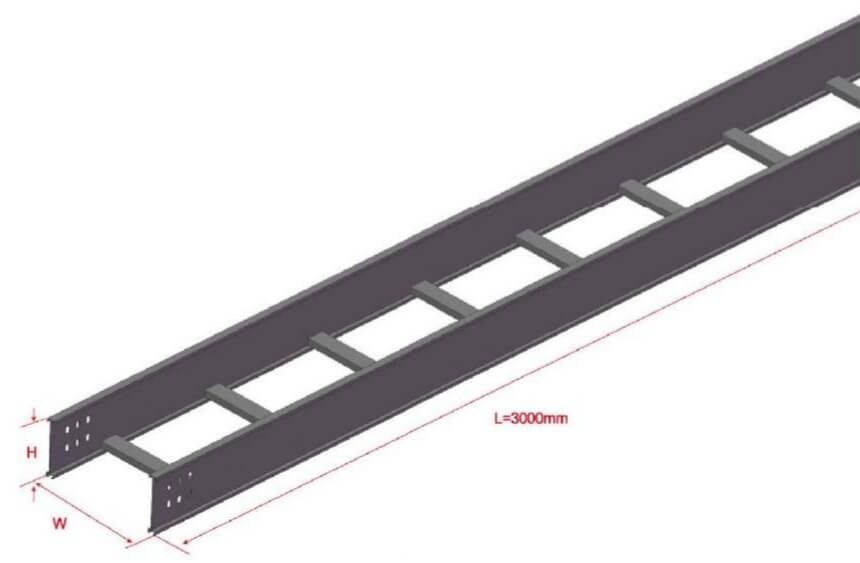

Drawing for Aluminium Cable Ladder

Customizable Service: Can be customized according to customer's size, load capacity and surface treatment requirements to meet different project needs.

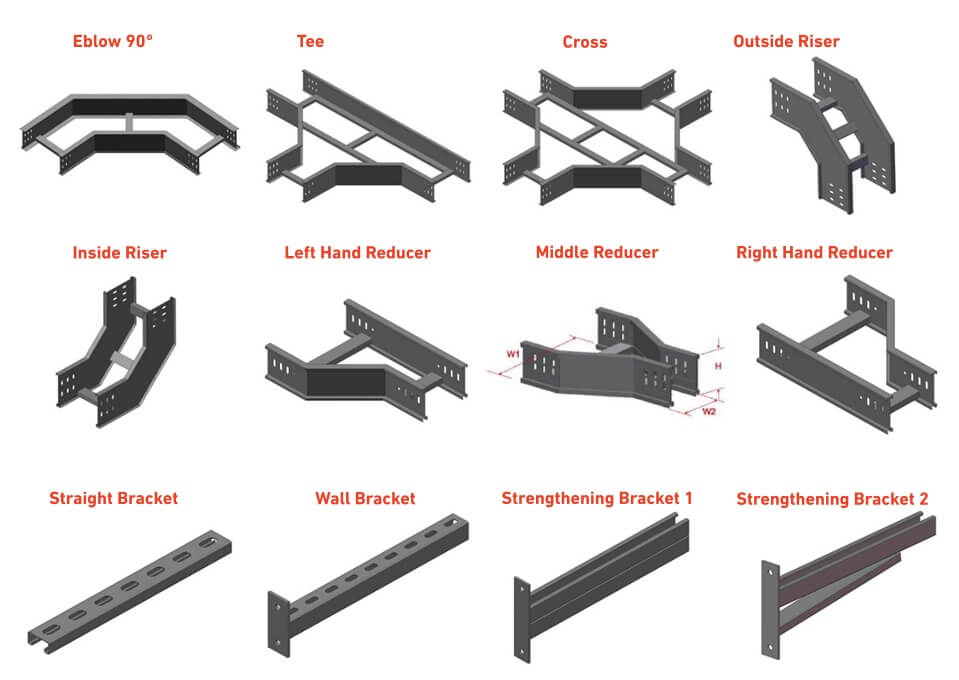

Bending Components And Brackets for Aluminium Ladder Cable tray.

Schematic Diagram Of Cable Ladder Layout

Production Process

Annual Production Capacity: 5000 Tons

With a large-scale production base, we are fully capable of supporting large orders, mass production, and ensuring stable and on-time delivery for global customers.

Strict Quality Control System

We implement a complete 5-step inspection process from raw material procurement to finished product delivery, strictly controlling every detail to ensure products meet international standards. All our cable trays and strut channels are certified by UL, CE, NEMA, SGS, and ISO9001.

Customization Service

We provide professional OEM & ODM services, supporting customization in size, surface treatment, load capacity, hole patterns, and other specifications to meet different project requirements.

Professional After-Sales & Technical Support

Our experienced after-sales team offers reliable technical support, on-site guidance, and customized solution design for your industrial and construction projects.

Packing And Delivery For Cable Tray

1.In bundle

2.Wrapping Film,plastic tape, Plywood pallet.

3.Plywood Pallets is optional for electric cable trunking

4.Carton for accessories

5.As per requirements

Installation Case On Site For Winwin Cable Tray System

Main Application

Certificate

Founded in 2006, Winwin Group has obtained certifications including UL, cUL,CE, SGS, ISO9001, ISO14001, ISO45001,IEC 61537-2006 and NEMA VE 1-2009.

Winwin is a professional manufacturer and supplier of a full range of cable management solutions, specializing in the design, production, and export of high-quality products. Our main products include pre-galvanized steel cable trays, hot-dip galvanized cable trays, powder coated cable trays, fire-resistant steel cable trays, stainless steel cable trays, basket cable trays, wire mesh cable trays, perforated cable trays, cable trunking, cable ladders, hinging cable trays, ZAM cable trays, large-span cable tray, aluminum cable trays, FRP cable trays, strut channels, and complete cable tray accessories.

Our premium cable trays and strut channels are widely used in commercial buildings, power plants, industrial workshops, hospitals, subways, data centers and other construction & electrical projects. They serve cable management, hoisting systems, industrial power distribution and building electromechanical engineering.We deliver stable quality, reliable performance and competitive pricing, offering cost-effective solutions for industrial and commercial projects across the globe.

Boasting 20 years of manufacturing and exporting experience, we have built an extensive global sales network and serve more than 70 countries and regions around the world, including the United States, Spain, Germany, Australia, New Zealand, and many others. We are committed to offering stable quality, on-time delivery, and professional services to global customers.

Welcome to contact us for long-term win-win cooperation.
