Perforated cable trays and solid bottom cable trays are the two most widely used tray types in global electrical projects. Many buyers and engineers easily confuse their applicable scenarios, resulting in poor heat dissipation, dust accumulation, signal interference or over-protection and cost waste. Choosing the right tray type according to on-site environment, cable type and functional requirements is the key to achieving safe, standardized and cost-effective cable laying. To help project teams make quick and accurate decisions, this article clearly compares the structural differences, core advantages, limitations and suitable application scenarios of perforated and solid cable trays. Here is cable tray selection guide and Perforated vs solid cable tray:

Structural & Functional Differences

The most essential difference between the two products lies in the bottom structure, which directly determines heat dissipation capacity, dustproof performance, waterproof effect and installation adaptability. Perforated cable trays feature uniform drainage and heat dissipation holes on the bottom plate, forming an open breathable structure. Solid cable trays adopt fully enclosed bottom and side plates, providing complete physical isolation and protection for internal cables.

This structural gap leads to completely different engineering performances: perforated trays focus on ventilation, heat dissipation and drainage, while solid trays focus on sealing, shielding and anti-pollution protection.

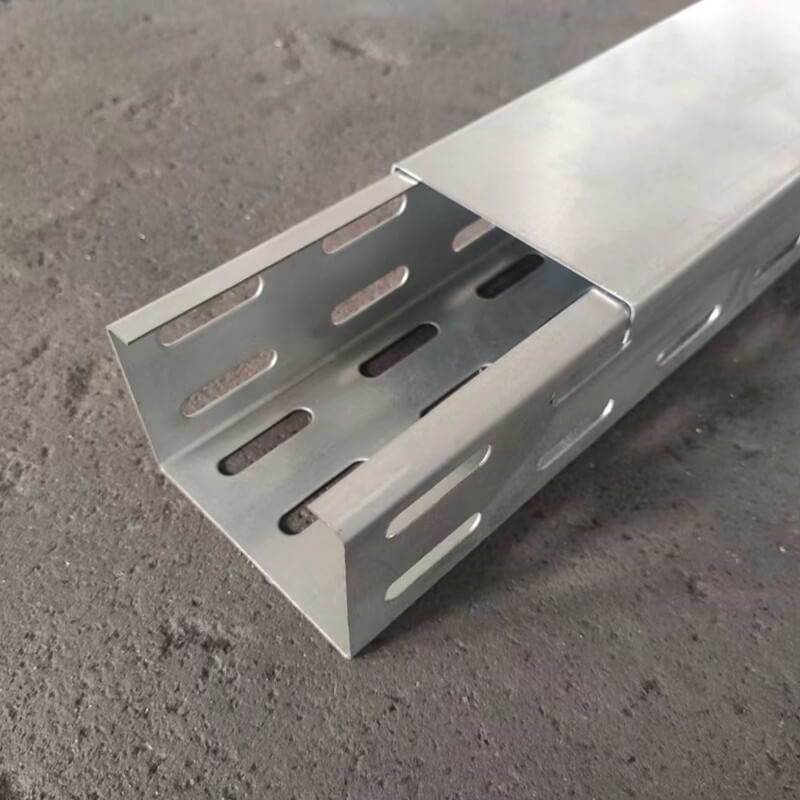

Perforated Cable Tray: Advantages & Suitable Scenarios

Perforated cable tray is the mainstream general-purpose tray for indoor and dry outdoor environments. The dense hole design realizes natural air convection, rapidly discharging heat generated by high-power cables during long-term operation. It effectively avoids cable overheating, insulation aging and power loss increase, greatly improving the overall safety and service life of the power system. In addition, the bottom holes can automatically drain condensed water and accumulated dew, preventing moisture retention inside the tray. This is a good heat dissipation cable tray.

This tray type is lightweight, easy to bend and install, with low wind resistance, making it very suitable for long-distance suspended wiring.

Best Application Scenarios: Indoor office buildings, commercial complexes, general factory workshops, dry outdoor pipe corridors, conventional power and control cable laying, ventilation-priority electrical systems.

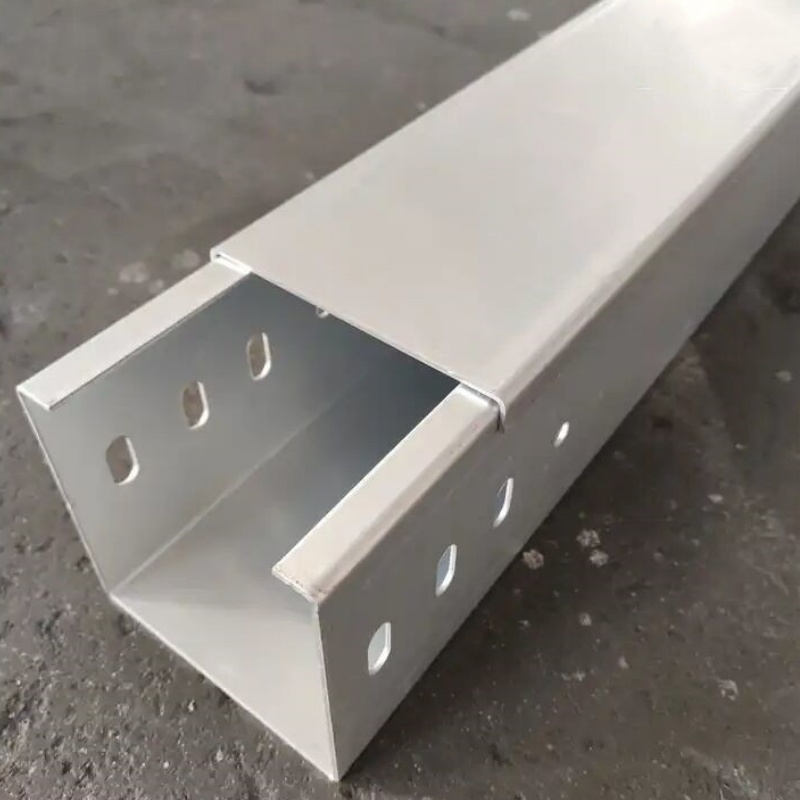

Solid Cable Tray: Advantages & Suitable Scenarios

Solid bottom enclosed  cable tray provides full closed protection without any holes. The fully enclosed structure completely isolates external dust, oil fume, floating debris, water mist and corrosive gas, avoiding cable contamination and insulation damage. Meanwhile, the integral metal closed structure delivers excellent electromagnetic shielding performance, which can effectively reduce crosstalk interference between power cables and weak-current signal cables.

Solid dustproof cable tray have higher overall rigidity and impact resistance, capable of resisting external mechanical extrusion and falling object impact, providing safer cable protection for harsh industrial environments.

Best Application Scenarios: Dust-prone factories, chemical workshops, oil fume industrial zones, clean rooms, pharmaceutical and food factories, tunnel humid environments, weak current signal wiring, projects requiring anti-interference and dustproof protection.

Direct Comparison Table

•Heat Dissipation: Perforated tray excellent; Solid tray general

•Dust & Pollution Resistance: Perforated tray general; Solid tray excellent

•Anti-Interference Performance: Perforated tray ordinary; Solid tray strong

•Drainage Capacity: Perforated tray good; Solid tray poor

•Wind Resistance & Load: Perforated tray light duty; Solid tray high rigidity

•Unit Cost: Perforated tray cost-effective; Solid tray slightly higher

How to Make the Right Choice for Your Project

If your project focuses on heat dissipation, long-span suspension and dry environment wiring, perforated cable tray is the most practical and economical option. If the site faces dust, oil smoke, chemical pollution, humid tunnels or requires stable signal transmission, solid cable tray is mandatory to ensure long-term stable operation of the electrical system.

In mixed functional areas, a combined layout can be adopted: using perforated trays for main power cable channels and solid trays for weak current and polluted sections, achieving a perfect balance between safety, heat dissipation and cost control.

Winwin Customized Cable Tray Solutions

Winwin provides full-series perforated and solid cable trays, supporting pre-galvanized, HDG, ZAM, powder coated and stainless steel surface treatments. All products comply with IEC 61537 international standards and are fully matched with elbows, tees, reducers, covers and installation accessories. We support personalized size customization and project-oriented selection guidance to help global customers obtain the most suitable commercial and industrial cable management solutions.

Conclusion

There is no absolute superior type between perforated and solid cable trays — the best choice depends entirely on the actual working environment and functional needs. Accurate tray selection can effectively reduce cable failure rate, extend system service life and control project cost. With rich product lines and professional engineering experience, Winwin continues to provide reliable, standardized and customized cable tray systems for global industrial, commercial and municipal projects.
