For commercial and industrial electrical wiring systems, compliance with authoritative industry standards is the core foundation of safety, stability, and project acceptance. Among trunking products, hinged cover wireway is one of the most widely used surface-mounted cable management solutions for power distribution rooms, mechanical equipment, and indoor commercial wiring. Its design, material, load performance, and safety thresholds are strictly defined by UL 870 and NEMA specifications. This article provides a complete breakdown of UL 870 and NEMA standards for hinge cover wireway, helping engineers and buyers fully understand compliant product selection and project application rules.

What Is UL 870 Standard?

UL 870 is the core safety standard issued by Underwriters Laboratories for standard electrical wireways and auxiliary fittings. It governs material composition, structural stability, mechanical strength, flame resistance, electrical safety, and surface protection performance of all metal wireway products sold in the North American market.

Winwin hinged cover wireway is fully manufactured in accordance with NEMA dimensional and structural regulations. The unified mold production guarantees consistent radian, accurate hole position, stable hinge opening and closing performance, and zero assembly deviation during on-site installation.

Core Standard Requirements for Hinged Cover Wireway

1. Steel Material & Gauge Requirements

UL 870 and NEMA clearly stipulate the code gauge steel thickness for wireway bodies and covers. Qualified wireway must use high-strength structural steel to ensure overall rigidity. Sufficient structural thickness effectively prevents deformation, bending, and vibration damage during long-term operation, maintaining stable protection for internal cables.

2. Hinge Structural Durability

The hinged opening structure is the biggest feature of hinged wireway. Industry wireway system standards require the integrated cold-formed hinge to withstand repeated opening and closing without loosening, cracking, or deformation. The closed state must maintain effective dustproof and anti-collision performance to ensure long-term stable sealing protection.

3. Surface Finish & Anti-Corrosion Rules

Standard wireway finishes include pre-galvanized, hot-dip galvanized, and powder-coated options. UL 870 requires the surface treatment to have stable oxidation resistance, avoiding metal corrosion and powder falling that may affect electrical safety. Different finishes correspond to different application environments to meet dry indoor, general industrial, and low-corrosion scenarios respectively.

4. Knockout & Accessory Compatibility

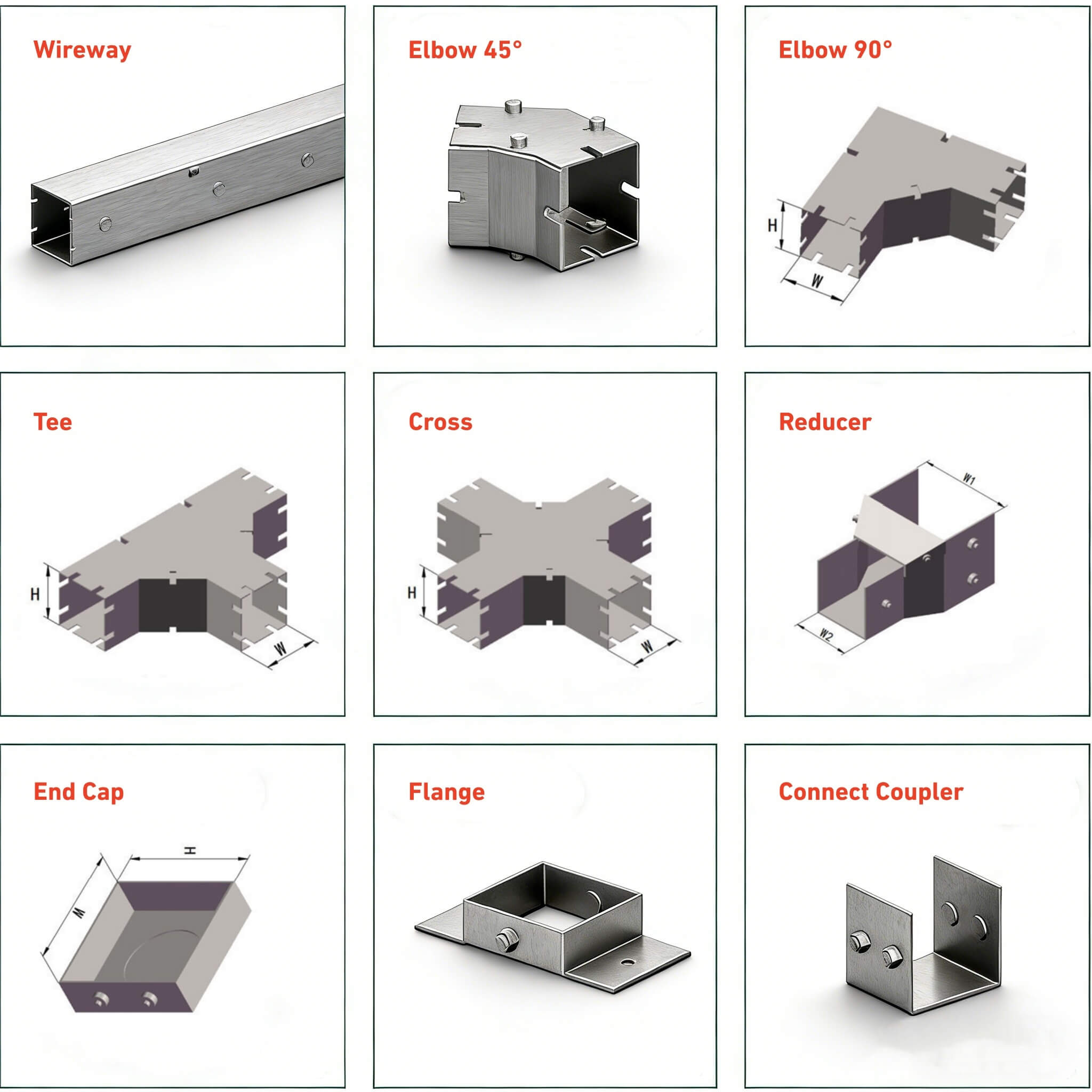

Standard wireway supports dual design of with or without knockouts. The pre-reserved knockout positions follow unified spacing and caliber standards, ensuring standardized branch wiring. All matching fittings such as 90° elbows, 45° elbows, tees, crosses, and reducers are fully unified in size to realize seamless system docking.

Why Standard-Compliant Wireway Matters for Your Project

•Pass project inspection smoothly: UL & NEMA compliant wireway fully meets North American electrical code requirements

•Improve wiring safety: Standard structural strength avoids cable extrusion, friction damage and hidden electrical hazards

•Save installation cost: Unified standard accessories eliminate on-site cutting and modification

•Long service life: Qualified materials and finishes ensure stable performance for years of operation

Winwin UL870 & NEMA Compliant Hinged Wireway

All Winwin hinged cover wireways are UL 870 Listed and strictly manufactured per NEMA standards. We provide complete hinge cover wireway sizes including 2.5×2.5”（63.5 X 63.5mm), 4×4”( 102 X 102MM), 6×6”(152 X 152mm) and support customized knockout/non-knockout structures and various surface finishes. With full matched standard fittings, Winwin provides customers with one-stop compliant wire management solutions for North American commercial and industrial projects.

Published by Fujian Winwin Group | UL & NEMA Certified Electrical Wireway Manufacturer
